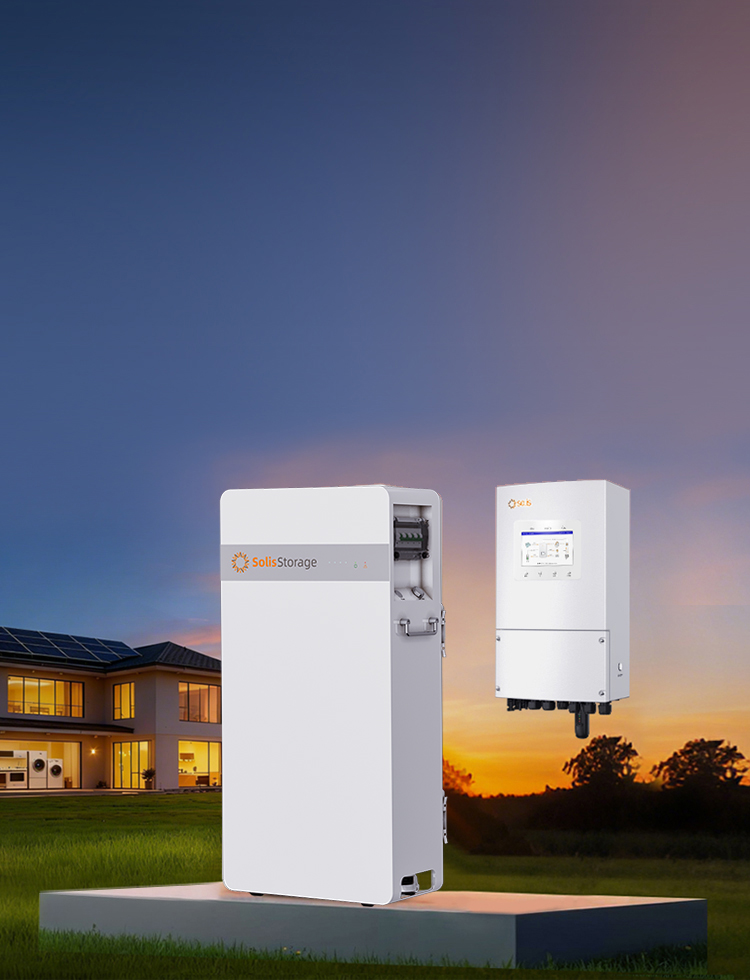

IntelliHome Wall/Floor Mounted Energy Storage Systems

IntelliHome

5-16kWh Low Voltage Batteries / 3-20kW Hybrid Inverters

Product Introduction

The IntelliHome series is SolisStorage's complete "storage inverter + battery" solution for residential use. It features a range of storage inverters and battery products with a simple, stylish design that takes up no floor space. The system supports both wall-mounted and floor-standing installation. It offers three capacity options — 5kWh, 10kWh, and 16kWh — paired with 5–20kW low battery voltage (51.2 VDC) storage inverters. Up to 8 units can be connected in parallel, allowing a maximum expansion of 128kWh. The core storage cells are sourced from a Top 2 brand, delivering 6,000+ cycles, and are backed by comprehensive safety protection measures to ensure a 10-year reliable service life. This solution is ideal for new PV + storage power stations, secure backup power, and storage retrofitting projects. With its ultra-thin aesthetic design and smart home integration, it lets you enjoy a green energy lifestyle.

Technical Specifications

14kWh Battery 16kWh Battery S6-EH1P(3-8)K-L-PLUS S6-EH1P(10-16)K03-NV-YD-L

    Low Voltage Batteries

    Battery type: LiFePO4

    Nominal capacity: 14kWh

    Operating voltage: 44.8-57.6V

    Rated cell capacity: 314Ah

    Recommended charge/discharge current: 100A

    Cycle life: >6000 Cycles

    Ingress protection: IP66

Datasheet Download

    Low Voltage Batteries

    Battery type: LiFePO4

    Nominal capacity: 16kWh

    Operating voltage: 44.8-57.6V

    Rated cell capacity: 314Ah

    Recommended charge/discharge current: 100A

    Cycle life: >6000 Cycles / 10 Years

    Ingress protection: IP66

Datasheet Download

    Single Phase Hybrid Inverters

    MPPT voltage range 90 - 435V

    MPPT number : 2

    Max. input strings number: 2/4

    Rated output power: 3kW 3.6kW / 4.6kW / 5kW / 6kW / 8kW

    Rated grid voltage: L/N/PE, 220V / 230V

    Ingress protection: IP66

Datasheet Download

    Single Phase Hybrid Inverters

    MPPT voltage range: 100 - 450V

    MPPT number : 3

    Max. input strings number: 6

    Rated output power: 10kW / 12kW / 14kW / 16kW

    Rated grid voltage: 220V / 230V

    Ingress protection: IP66

Datasheet Download

Leading Features

Supports up to 20A PV input current, compatible with future higher-power PV modules

200% overload for 10s in off-grid mode, ensuring stable startup of motors, water pumps and air conditioners

Seamless on/off-grid switching in under 10ms, guaranteeing an uninterrupted power supply

More battery options, compatible with any battery (between 40V-60V)

Supports existing PV grid-tied power connection for export control and off-grid use

Multiple methods of generator connection and auto control, enabling flexible local deployment

Support max 6 units in parallel, expanding system capacity

Smart Load management, extending backup time for critical loads

Customizable battery backup level for uninterrupted power

Supports PV-only off-grid operation, reducing upfront costs

AI-Powered & VPP-Ready - maximise savings, unlock additional incomem

7-inch industrial-grade LCD screen, providing a larger, user-friendly interface for local operation

Ingress protection IP66, for operation in harshconditions

Redefining C&I Storage

Downloads

Datasheet Certificate Manual
S6-EH1P(10-16)K-AU-Flyer-V2.4
Solis_report_IEC&EN IEC 62040_FlexHome-(4.66-40)kWh-L(-AU)_AUS Solis certificate SA TS 5398 IntelliHome-(14-16)kWh-OD AU
Manual IntelliHome-14kWh/16kWh-OD_AU
