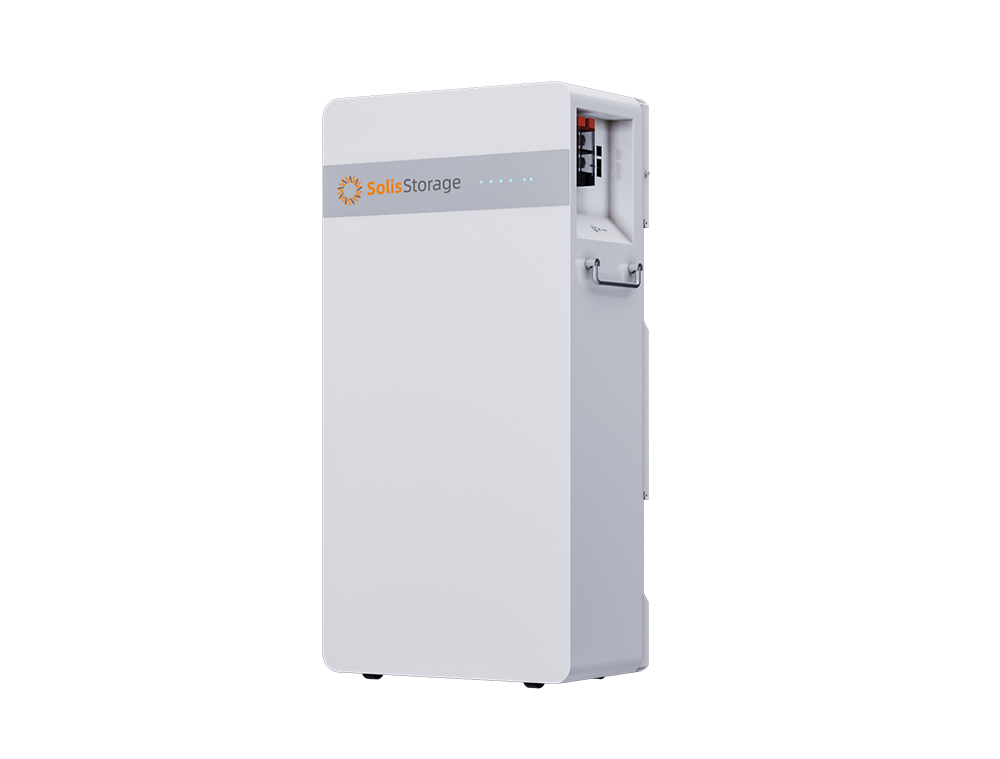

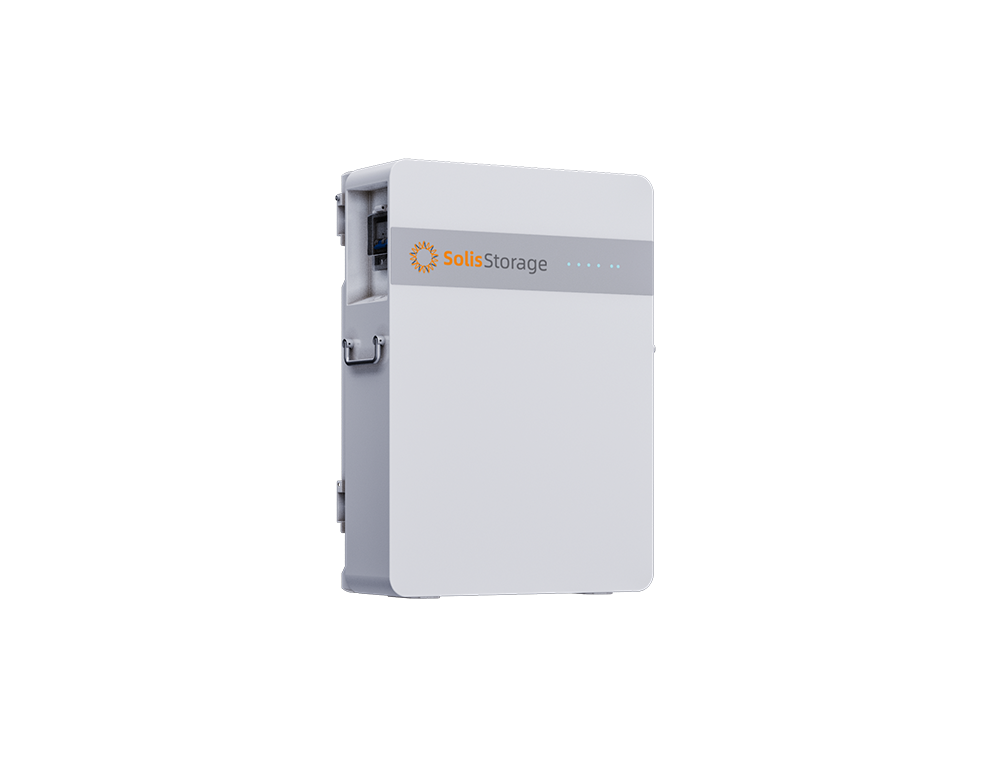

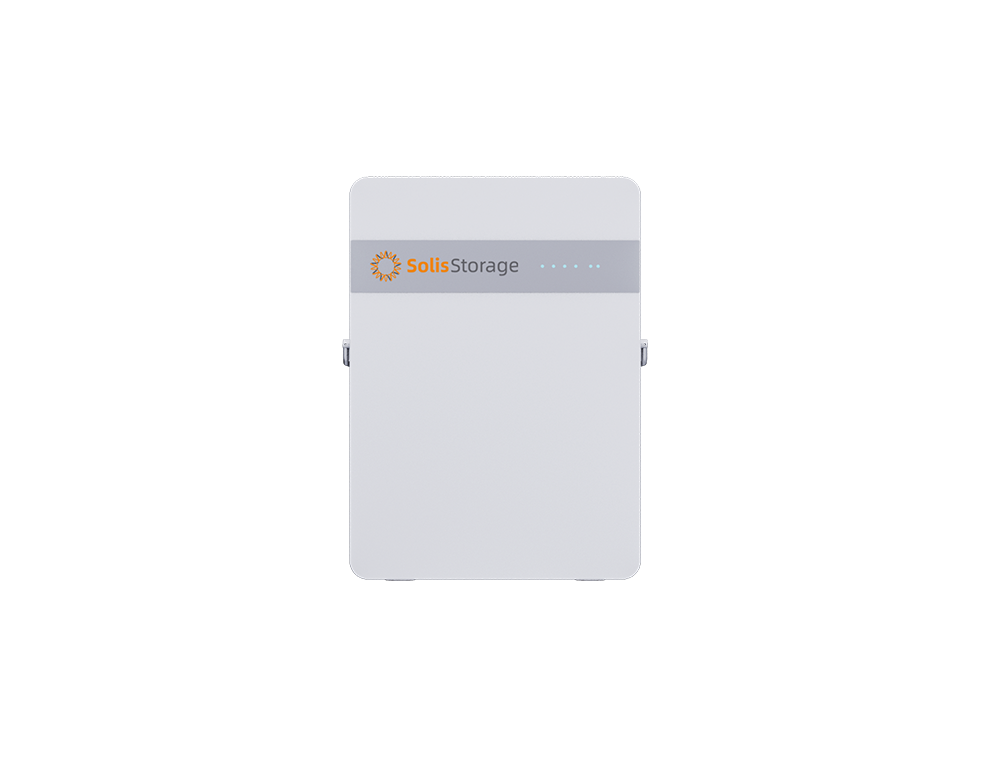

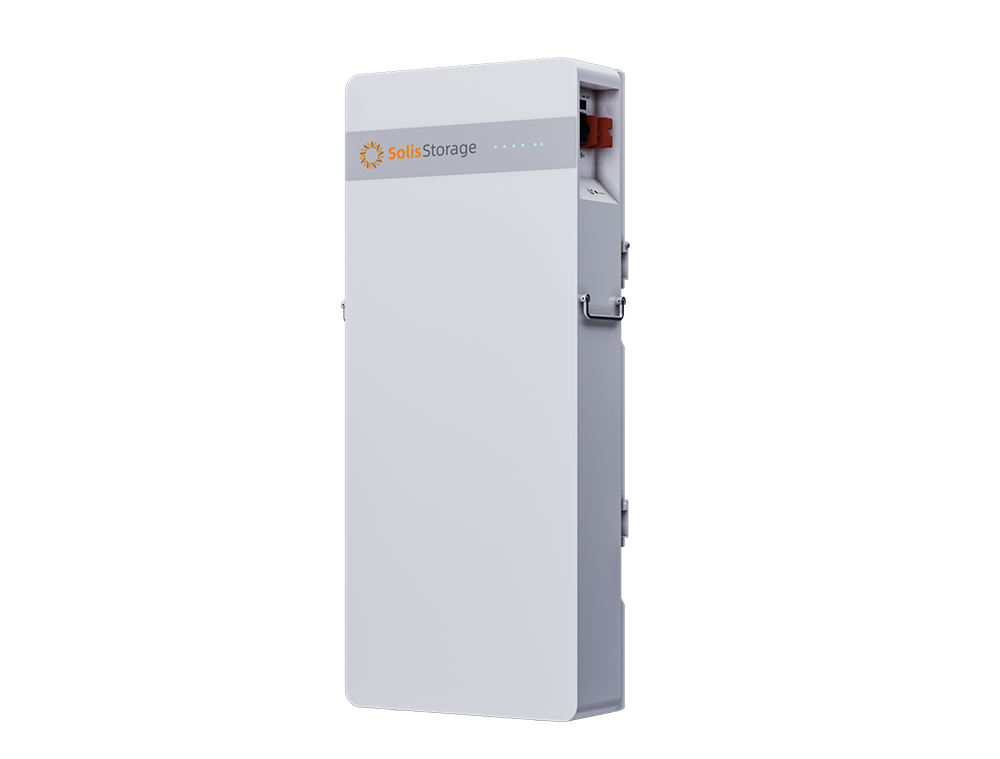

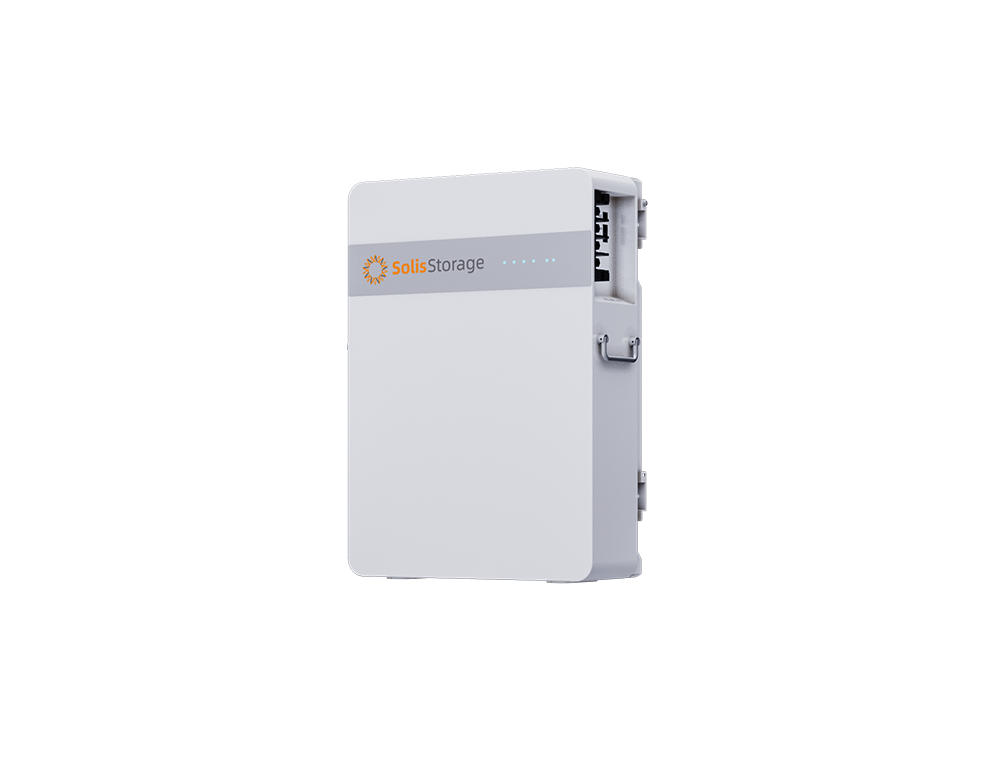

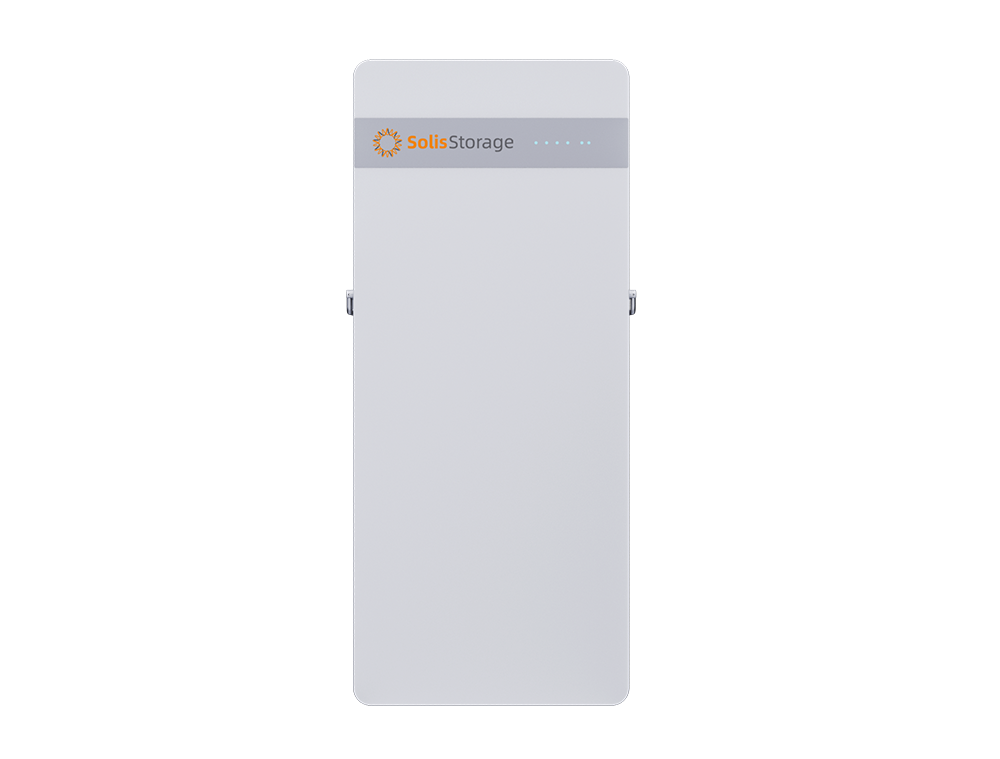

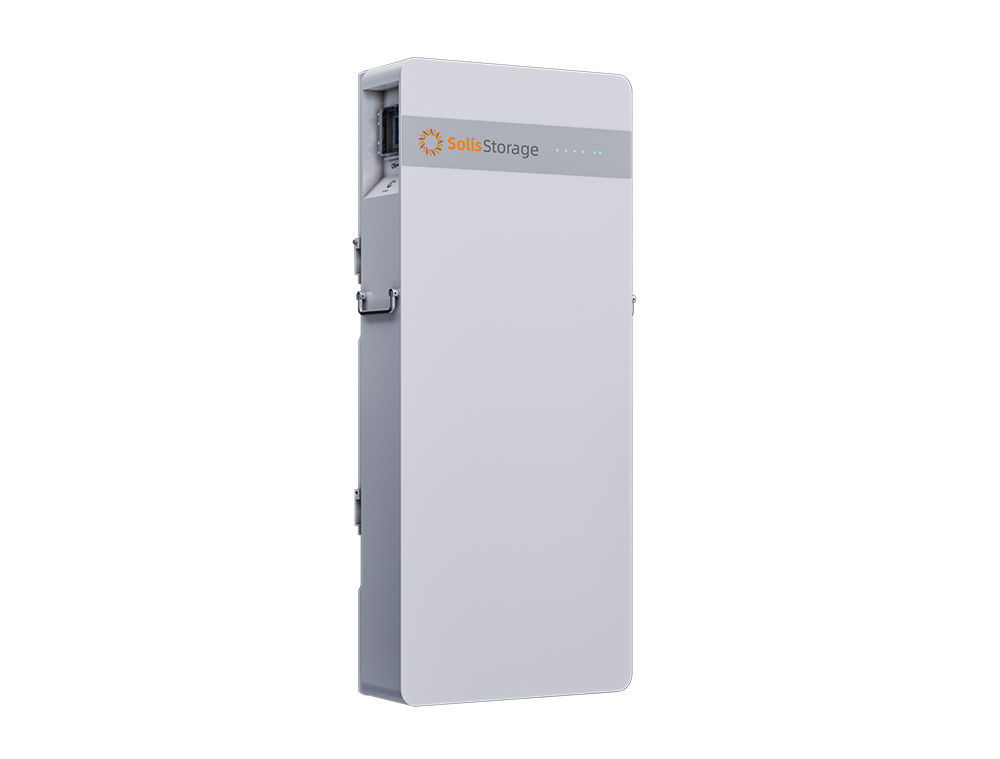

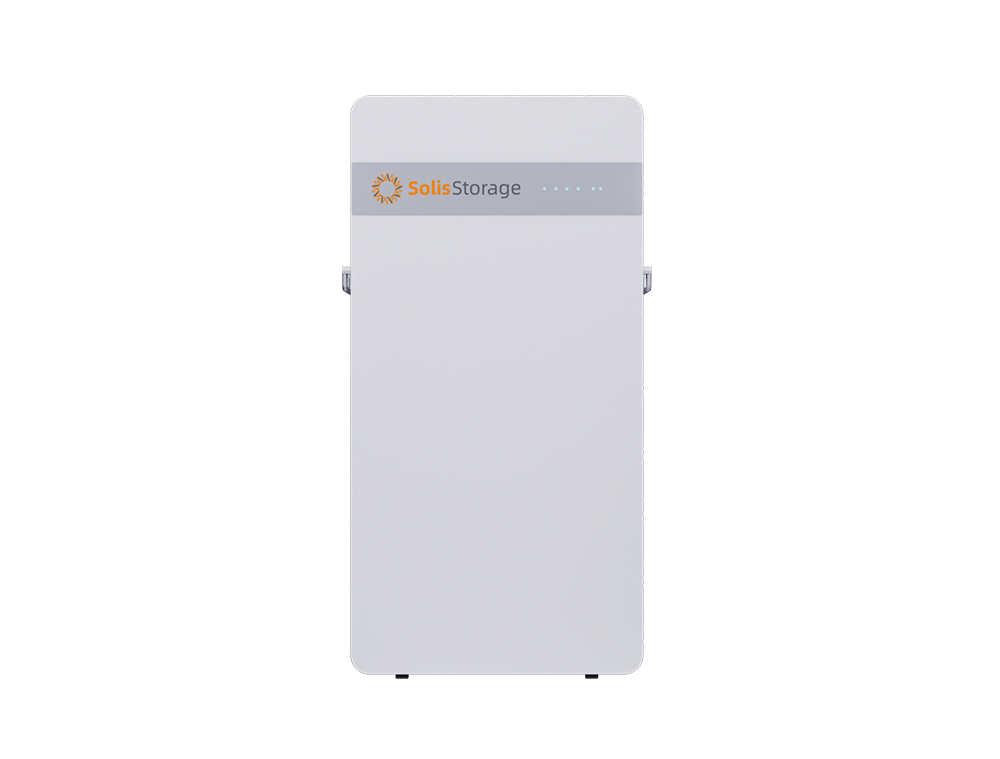

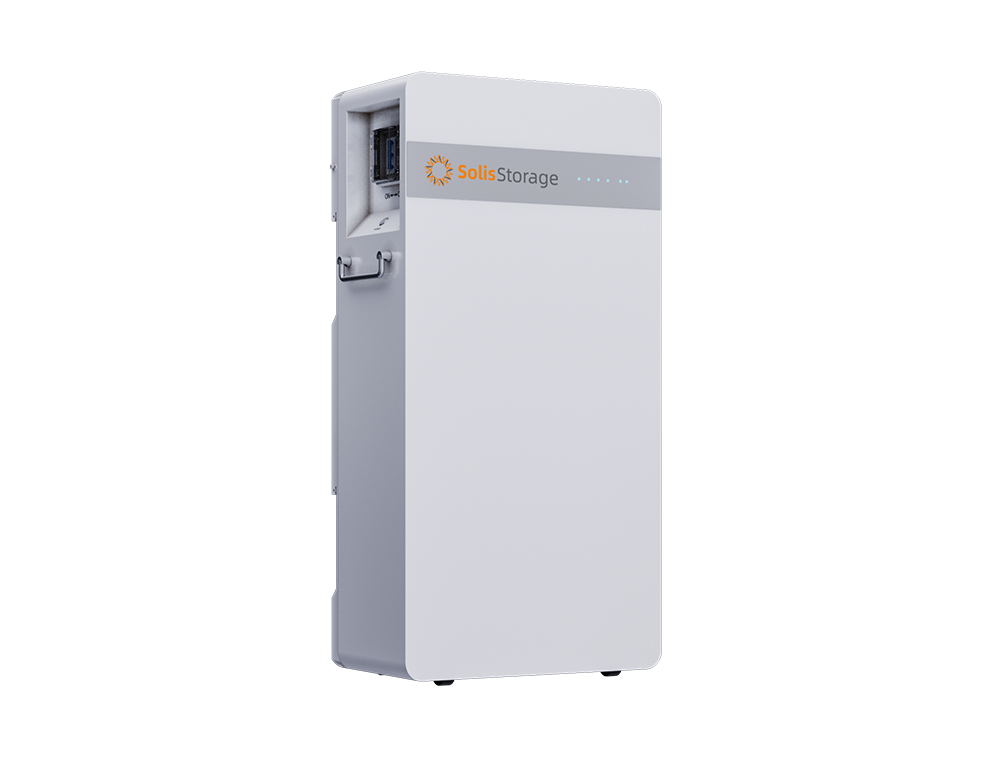

Residential Energy Storage Batteries

SBAT-R(5-16)kWh-L-WM-ID

5kWh / 10kWh / 16kWh

Product Introduction

The SBAT-R(5-16)kWh-L-WM-ID series low-voltage lithium batteries are specifically designed for residential energy storage, offering three models: 5kWh, 10kWh, and 16kWh. This series is fully compatible with Solis residential energy storage inverters. Utilizing high-performance LFP cells, each battery pack functions as an independent unit equipped with an intelligent Battery Management System (BMS) to ensure safe and stable operation. It efficiently boosts household self-consumption rates while providing reliable backup power during grid outages.

Technical Specifications

5kWh Battery 10kWh Battery 16kWh Battery

    SBAT-R5kWh-L-WM-ID

    Battery type: LiFePO4

    Nominal capacity: 5.1kWh

    Usable capacity: 4.6 kWh

    Operating voltage: 44.8-57.6V

    Rated cell capacity:100Ah

    Recommended charge/discharge rate:0.5C

    Recommended charge/discharge current: 50A

    Cycle life: >6000 Cycles (@25°C, 0.5C/0.5C, 70% EOL@90% DOD) / 10 years

Datasheet Download

    SBAT-R5kWh-L-WM-ID

    Battery type: LiFePO4

    Nominal capacity: 5.1kWh

    Usable capacity: 4.6 kWh

    Operating voltage: 44.8-57.6V

    Rated cell capacity:100Ah

    Recommended charge/discharge rate:0.5C

    Recommended charge/discharge current: 50A

    Cycle life: >6000 Cycles (@25°C, 0.5C/0.5C, 70% EOL@90% DOD) / 10 years

Datasheet Download

    SBAT-R10kWh-L-WM-ID

    Battery type: LiFePO4

    Nominal capacity: 16kWh

    Usable capacity: 14.46kWh

    Operating voltage: 44.8-57.6V

    Rated cell capacity:100Ah

    Recommended charge/discharge rate:0.5C

    Recommended charge/discharge current: 157A

    Cycle life: >6000 Cycles (@25°C, 0.5C/0.5C, 70% EOL@90% DOD) / 10 years

Datasheet Download

Leading Features

Built-in professional fire-suppression module, mitigating thermal runaway risks at the source and providing comprehensive protection for household electricity safety.

Perfectly compatible with the full Solis inverter portfolio, featuring automatic recognition for seamless integration. No complex commissioning is required, making operation easy even for first-time users.

Supports remote inverter upgrades, allowing system optimization without on-site visits. This significantly reduces operation and maintenance costs and ensures a worry-free user experience.

Ultra-low self-discharge rate of less than 3% per month, maintaining sufficient energy even during long periods of inactivity. Combined with intelligent sleep mode, it further reduces unnecessary energy consumption and improves overall energy efficiency.

Redefining C&I Storage

Downloads

Datasheet
SBAT-R(5-16)kWh-L-WM-ID-Global-Datasheet-V1.0
