EverCore
C&l Energy Storage Batteries

PrimePower-109kWh

Product Introduction

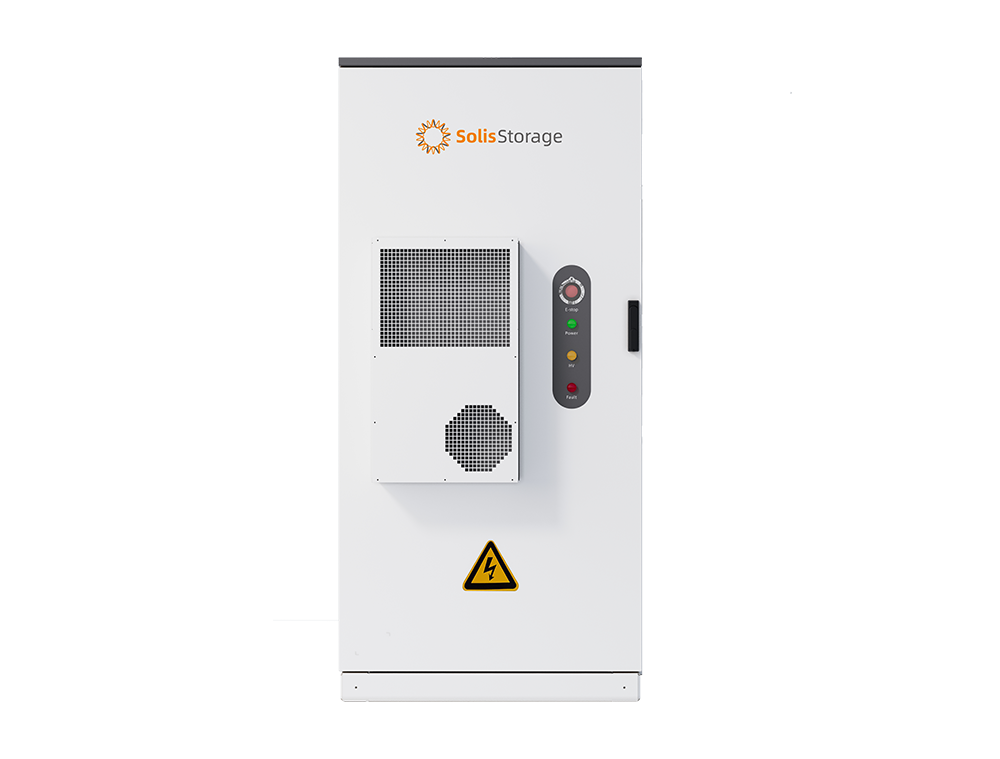

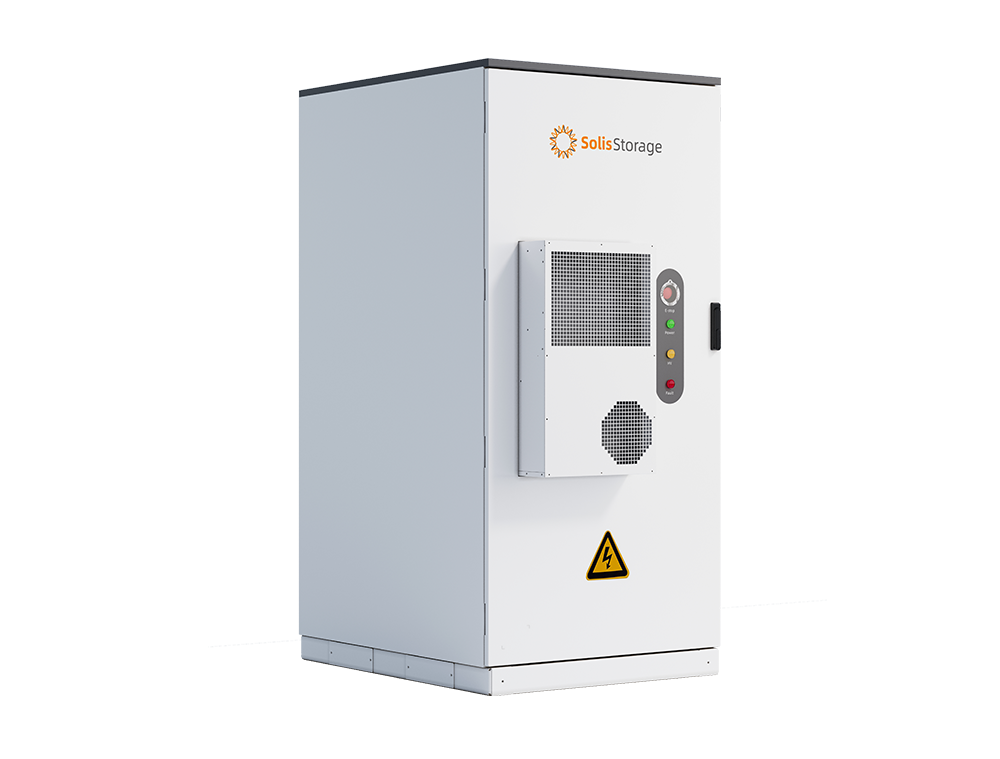

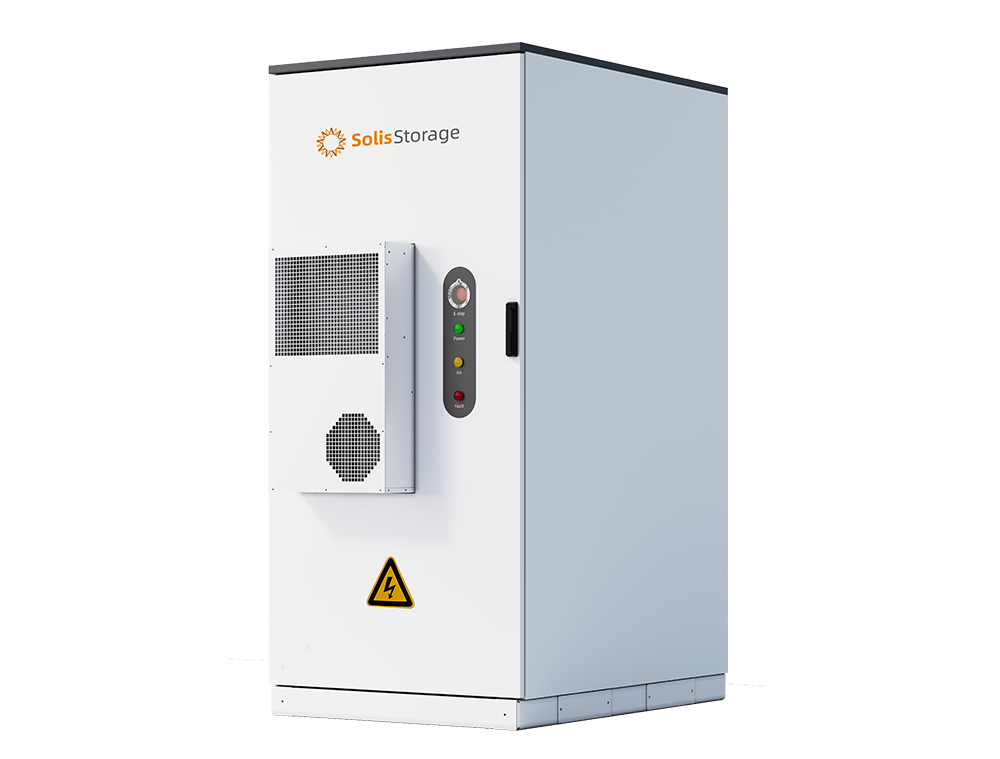

Solis PrimePower-109kWh Series Commercial Outdoor Battery Cabinet seamlessly integrates with our PrimePower series energy storage inverters, suitable for grid-connected, hybrid, and pure off-grid applications. Featuring a modular design, the battery cabinet allows flexible capacity expansion with convenient installation and maintenance. The cabinet integrates a dual cooling system with fans and air conditioning, featuring IP55 protection and C5 corrosion resistance to withstand harsh environments. Its explosion-proof design incorporates an aerosol fire suppression system for enhanced safety. Easy installation delivers high investment returns while meeting enterprise demands for both power quantity and quality.

Technical Specifications

    PrimePower-109kWh

    System

    Rated energy capacity:  109.7kWh

    Max. cycle rate: 0.5P

    Usable energy capacity :  98.7kWh

    Ingress protection: IP55

    Battery

    Cell type:  LFP 3.2V / 306Ah

    Cell cycle life ①: 10000

    System battery configuration:  1P112S

    Rated voltage:  358.4V

    Operating voltage range:  313.6 ~ 403.2V

    Rated DC current: 157A

    Number of battery packs: 7

    Battery pack capacity:  15.67kWh

Leading Features

15 layers of safety protection, covering the cell level, pack level, and system level, ensuring comprehensive and reliable system safety.

Highly integrated all-in-one design with an overall cabinet IP55 protection rating and optional C5 anti-corrosion rating. Installation adopts PV-style one-click high- and low-voltage plug-and-play connectors, implifying on-site deployment.

CATL battery cells selected, ensuring high performance and long service life.

High-efficiency thermal management design: Packs feature a patented natural cooling solution with an aluminum alloy baseplate and an IP67 protection rating; A proprietary cabinet-level airflow design ensures a luster-level temperature difference of ≤5°C.

Fanless battery design for maintenance-free operation; combustible gas detectors require no calibration for up to 10 years, enabling easy operation and maintenance.

Flexible battery expansion, supporting parallel connection of 1–6 battery cabinets, with a maximum energy capacity of 654 kWh per system.
