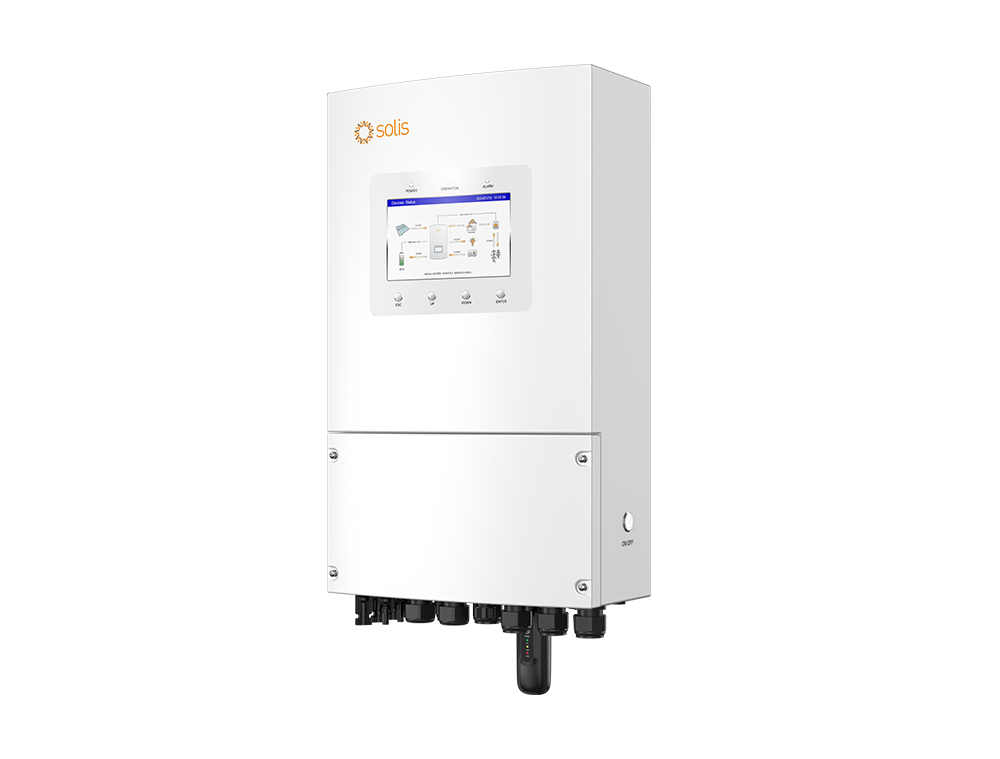

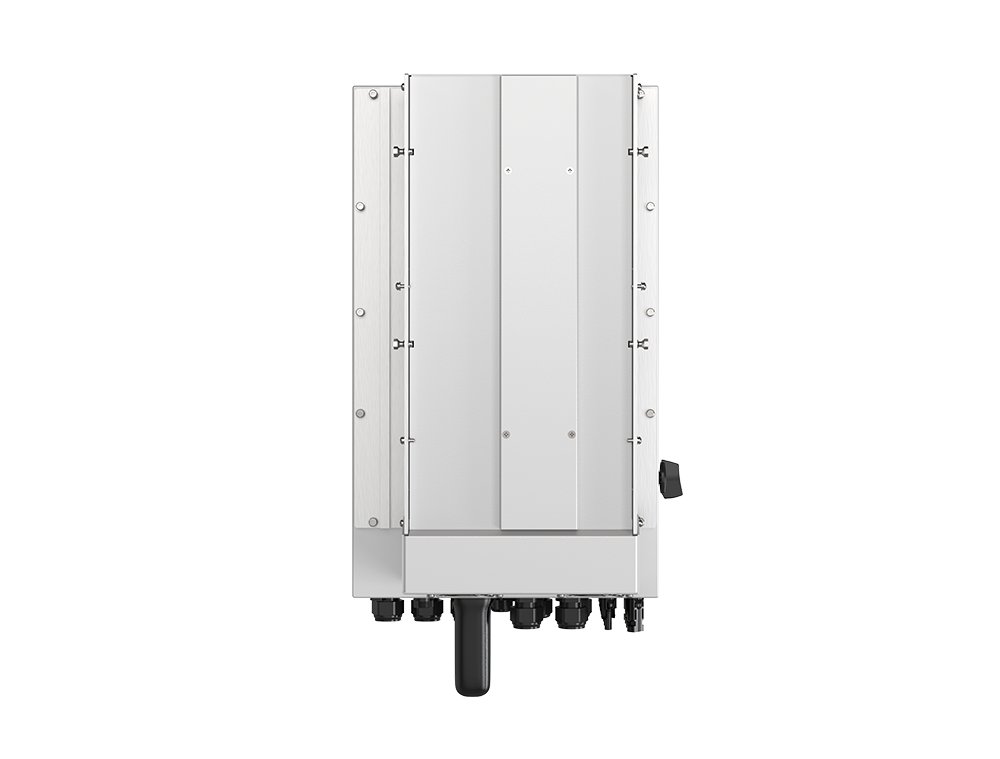

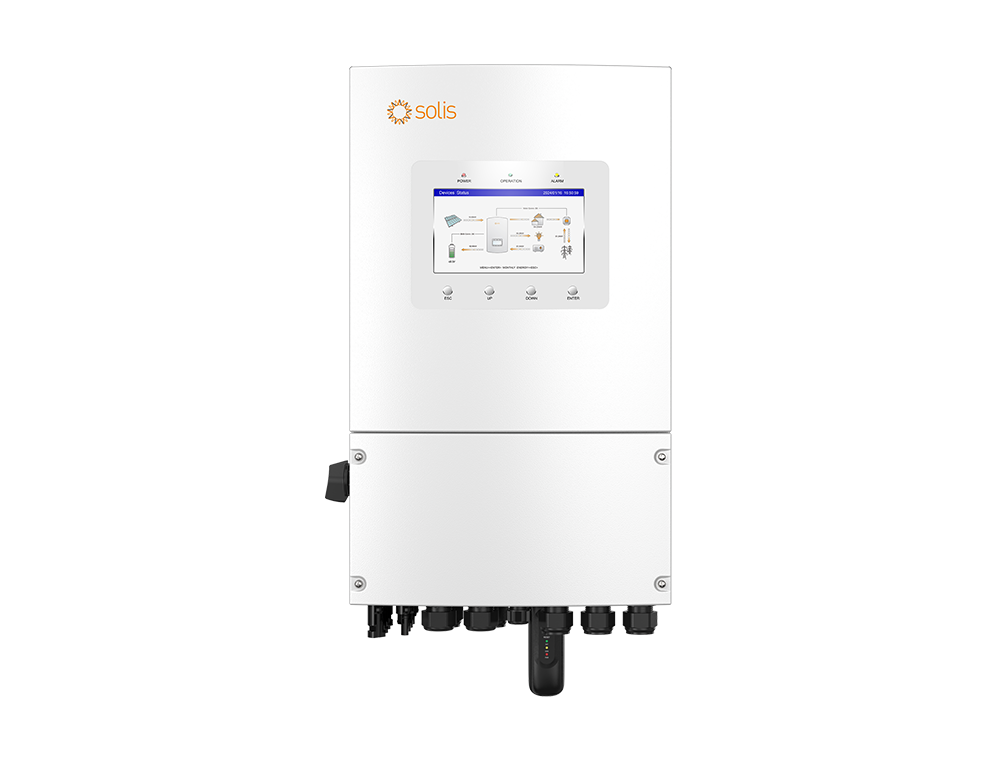

Single Phase Residential Energy Storage Inverters

S6-EH1P(3-10)K-L-PLUS

3K / 3.6K / 5K / 6K / 8K / 9K / 10K

Product Introduction

S6-EH1P(3-10)K-L-PLUS single-phase hybrid inverter with low battery voltage(40-60V). This advanced inverter series features two integrated MPPTs, each with a current capacity of up to 21 A, and is compatible with a wide range of lithium and lead-acid battery brands. Designed for both on- and off-grid applications, the S6-EH1P(3–10)K-L-PLUS series offers a wealth of features, including generator compatibility, grid-tied inverter coupling, parallel operation, and smart load management-making it a scalable solution for residential energy storage.

Technical Specifications

    S6-EH1P(3-10)K-L-PLUS

    Input DC (PV side)

    Max. input voltage: 500 V

    MPPT voltage range: 90 - 435 V

    MPPT number: 2

    Output AC (Back-up)

    Rated output power: 3kW / 3.6kW / 5kW / 6kW / 8kW / 9kW / 10kW

    Rated output voltage: L/N/PE, 220V / 230V

    Efficiency

    Max. efficiency: 96.2%

    General Data

    Ingress protection: IP66

Datasheet Download

Leading Features

Supports PV input up to 160% of the inverter's rated DC power, maximising solar utilisation

Supports up to 21A PV input current, compatible with the future higher-power PV module

200% overload for 10s in off-grid mode, ensuring stable startup of motors, water pumps and air conditioners

More battery options, compatible with any battery (between 40V-60V)

Supports existing PV grid-tie power connection for export control and off-grid use

Support max 6 pcs in parallel, expanding system capacity

Customizable battery backup level for uninterrupted power

PV only off grid mode, to reduce the initial investment cos

SolisCloud: Smart remote control, AI optimisation, and instant troubleshooting - all in one platform

7-inch industrial-grade screen, providing a larger, user-friendly interface for local operation

Ingress protection IP66, adapting to harsh ambient conditions

Redefining C&I Storage

Downloads

Datasheet Installation Video Manual
S6-EH1P(3-10)K-Global-Datasheet-V3.8.pdf
S6-EH1P(3-8)K-L-PLUS_EN
Manual_S6-EH1P(3-8)K-L-PLUS_EUR_V1.2 Manual_S6-EH1P(9-10)K-L-PLUS(21A)_EUR_V1.0 Manual_S6-EH1P10K-L-PLUS(21A)_EUR_V1.1
