All-in-One Stackable Energy Storage Systems

FlexAIO

Product Introduction

The SolisStorage FlexAIO series all-in-one home energy storage system is designed specifically for residential energy storage applications. This product features an integrated inverter and battery design, with a built-in Back-up port, allowing for whole-house backup power without the need for STS switching. The battery employs a stacked design, enabling rapid installation and deployment within 5 minutes. Its PACK with independent DC optimization modules, providing cluster-level management. This ensures system safety and efficiency while enhancing system flexibility by 300%. It also supports flexible use of both new and old batteries, improving cost-effectiveness by 33%. Furthermore, the product incorporates safety protection features across the battery cells,It stable operation within a wide temperature range of -25°C to 60°C. It is compatible with the Solis AI intelligent cloud, offering users a smart home living experience.

Technical Specifications

Single-phase ESS Three-phase ESS

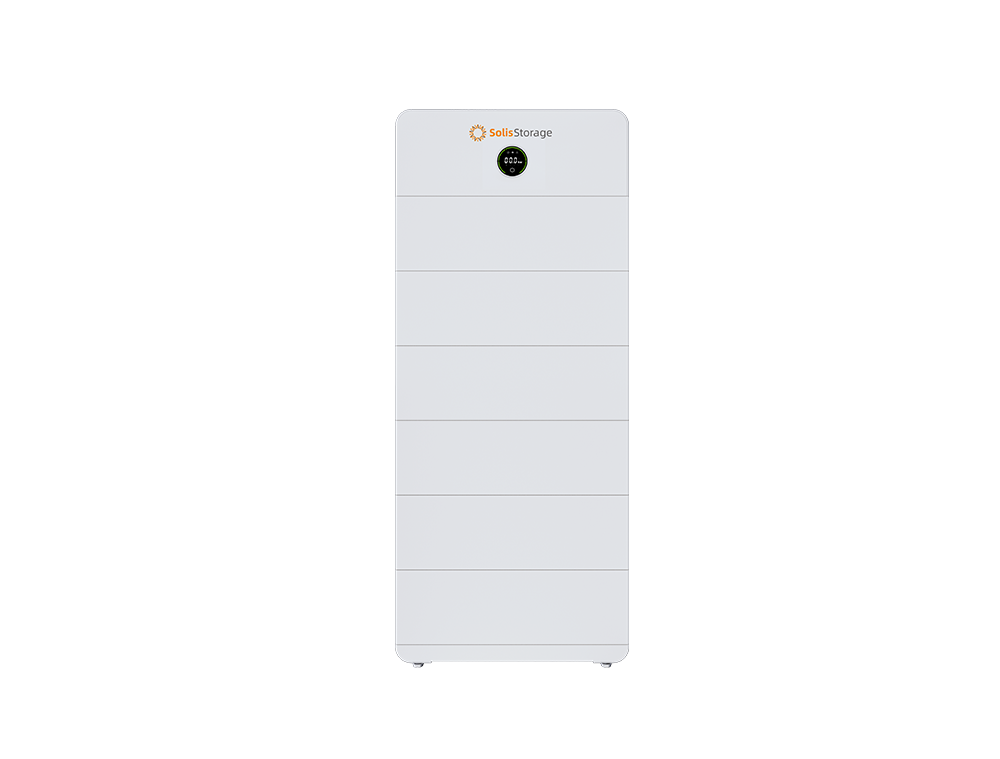

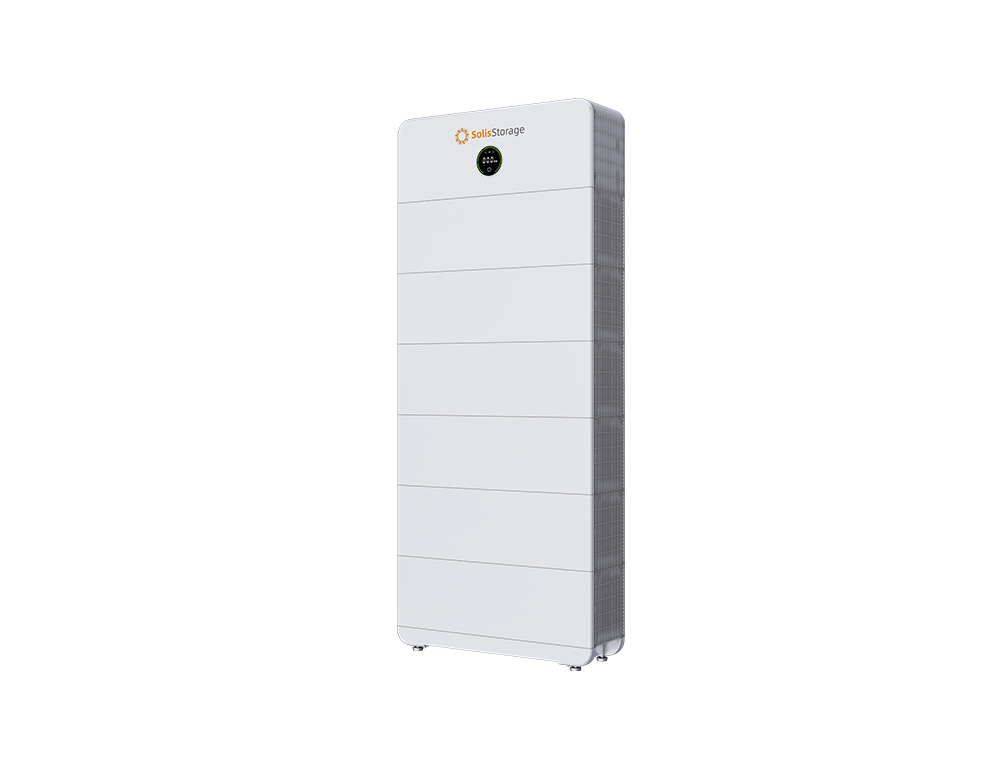

    FLexAIO-S7-EH1P(3-10)K-NV-ND-D

    Battery type: LiFePO4

    Battery Nominal energy: 6kWh / 9kWh

    Battery cell: 314Ah

    Cell cycle life: ≥6000

    Inverter Rated output power: 3kW / 3.6kW / 4.6kW / 5kW / 6kW / 8kW / 10kW

    Inverter Rated grid voltage: L/N/PE, 220 V / 230 V


Datasheet Download

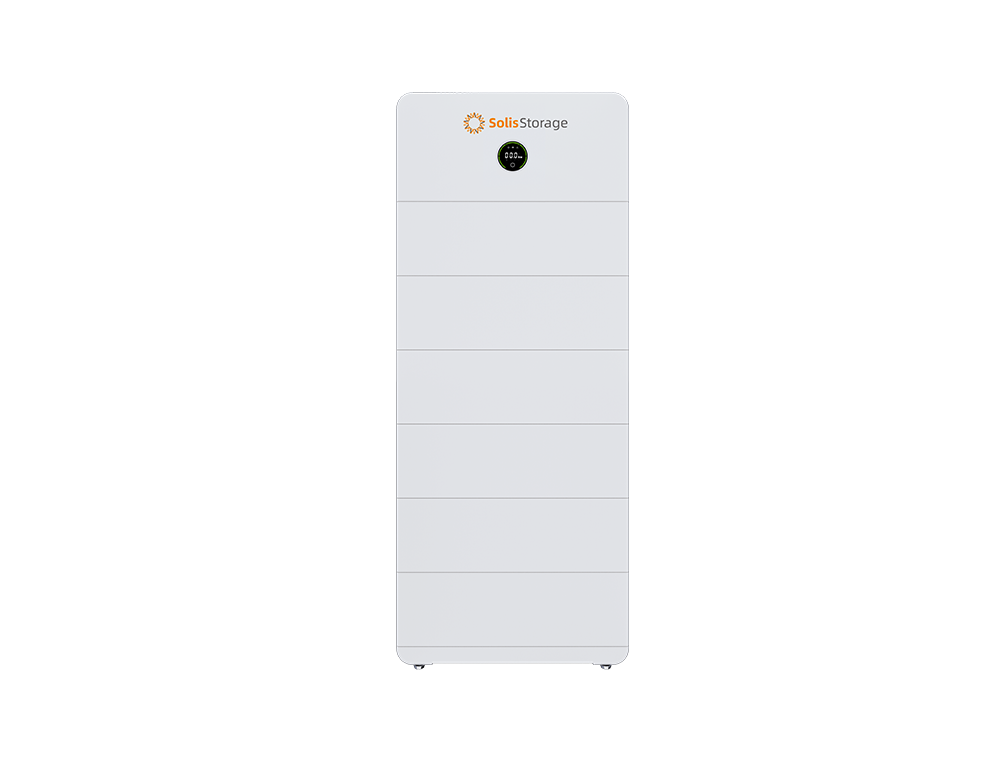

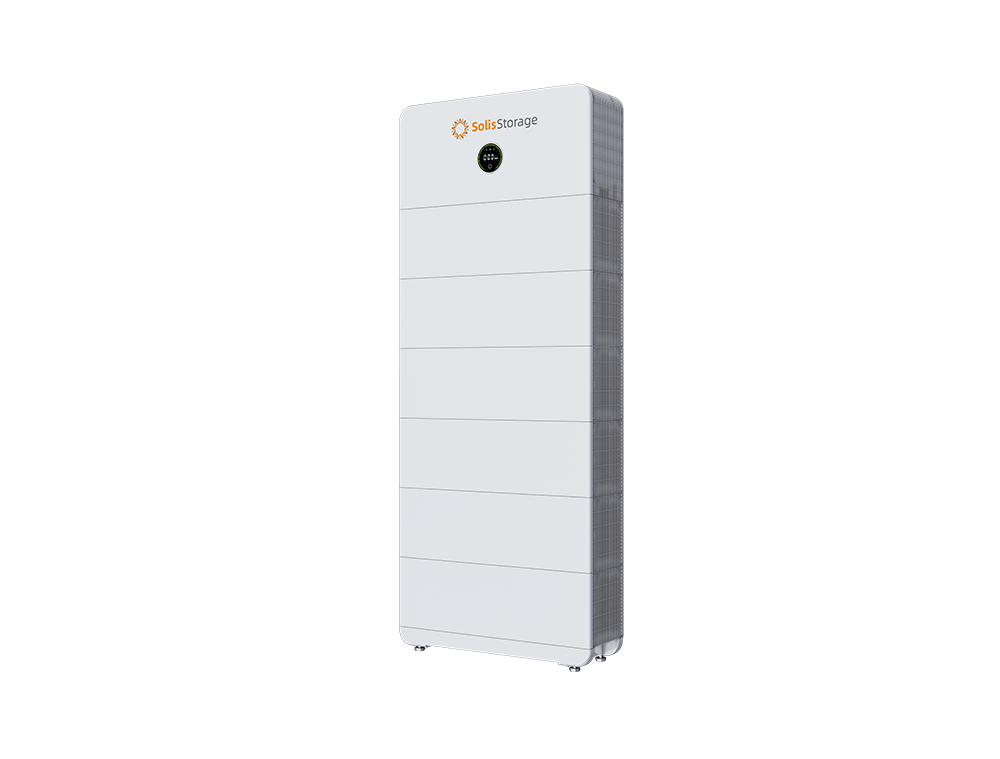

    FLexAIO-S7-EH3P(5-20)K-NV-ND-D

    Battery type: LiFePO4

    Battery Nominal energy: 6kWh / 9kWh

    Battery cell: 314Ah

    Cell cycle life: ≥6000

    Inverter Rated output power: 3kW / 3.6kW / 4.6kW / 5kW / 6kW / 8kW / 10kW

    Inverter Rated grid voltage: 3/N/PE, 220V / 380V; 3/N/PE, 230V / 400V

Datasheet Download

Leading Features

Uses A+ grade cells, ≥6,000+ cycle life

Five-layer hardware redundancy protection as standard

Supports 200% PV oversizing, maximizing solar energy utilization

Supports 150% overload for 10 seconds in off-grid mode

Supports seamless on-grid and off-grid switching with transfer times <10ms

Designed for all environments: IP66 protection & C5-M anti-corrosion

Intelligent thermal management with standard battery heating and active cooling, operable from -20°C to 55°C

Supports mixing of 6kWh and 9kWh battery packs, as well as old and new batteries

Each cluster supports up to 6 stacked modules, with up to 6 clusters in parallel, expandable to a maximum of 324kWh

Independent module management with intelligent per-cluster optimisation

The system continues to operate safely even if a single battery pack fails

Dedicated VPP communication channel, plug-and-play direct connection to third party EMS/VPPs with an open protocol

Solis AI – smart energy management with generator support

Integrated stackable design for quick and easy installation within 5 minutes

Supports OTA remote upgrades for efficient operation and maintenance

Redefining C&I Storage

Downloads

Datasheet
FLexAIO-S7-EH3P(5-20)K-Global-Flyer-V1.0 FLexAIO-S7-EH1P(3-10)K-Global-Flyer-V1.0
