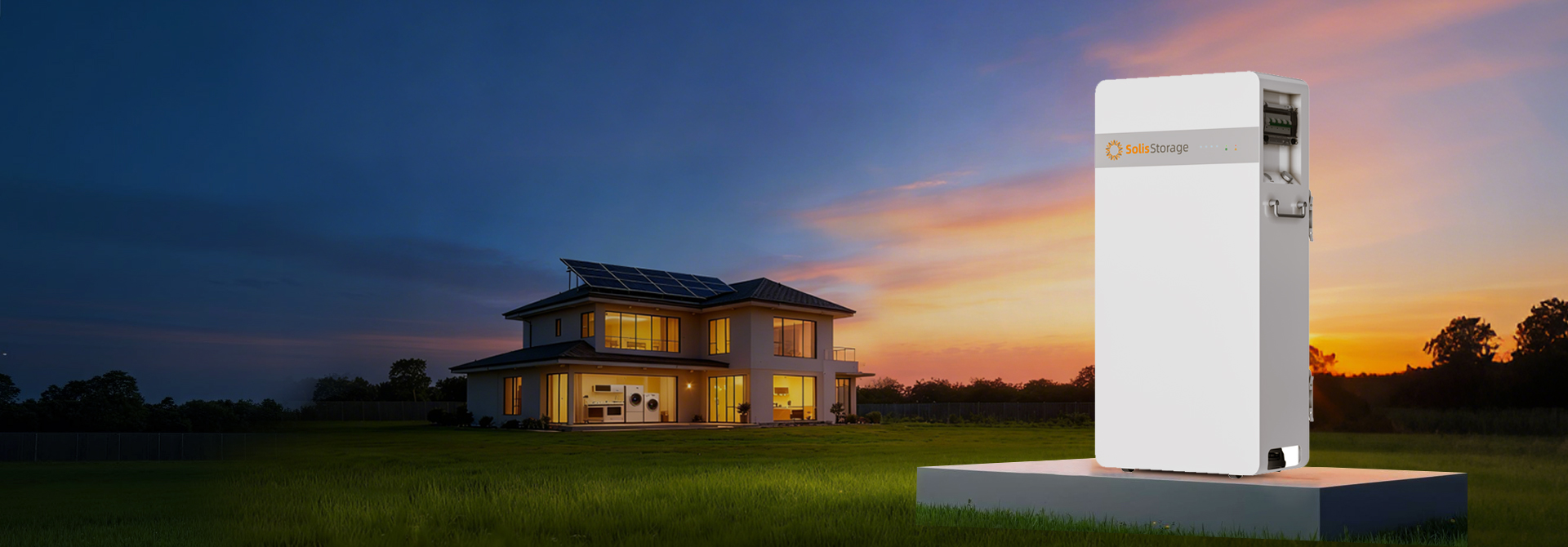

IntelliHome Wall/Floor Mounted Energy Storage Systems

IntelliHome

5-16kWh Low Voltage Batteries / 3-20kW Hybrid Inverters

Product Introduction

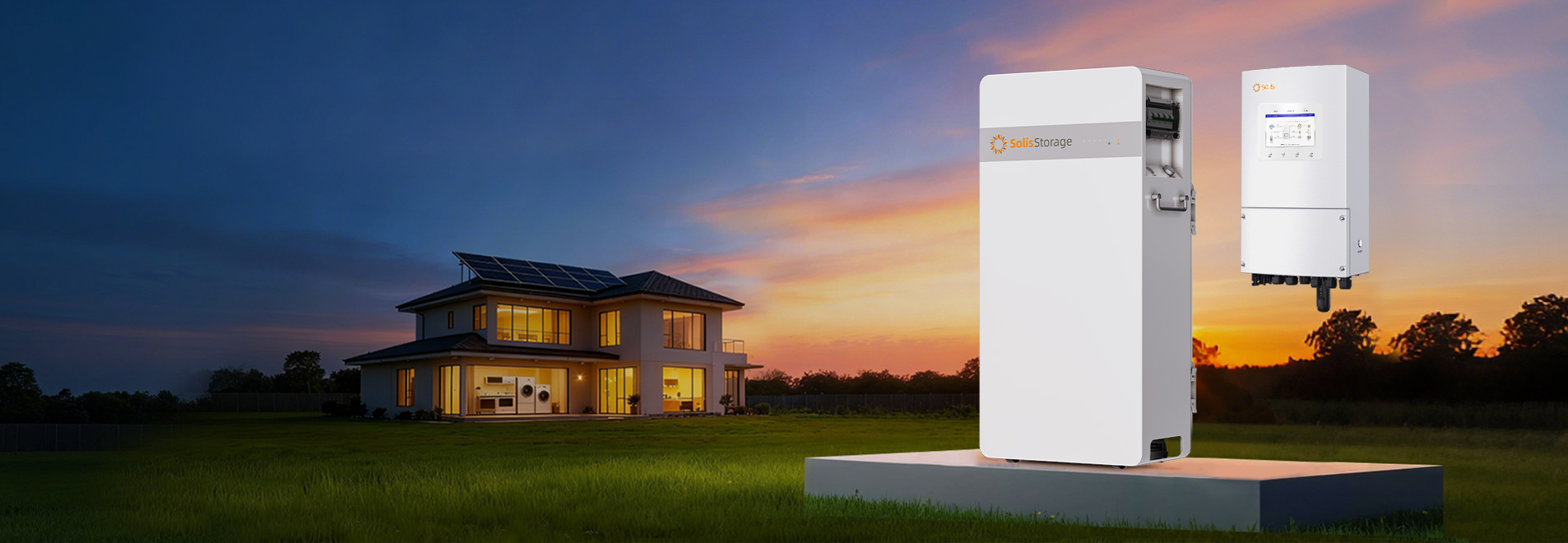

The IntelliHome series is SolisStorage's complete "storage inverter + battery" solution for residential use. It features a range of storage inverters and battery products with a simple, stylish design that takes up no floor space. The system supports both wall-mounted and floor-standing installation. It offers three capacity options — 5kWh, 10kWh, and 16kWh — paired with 5–20kW low battery voltage (51.2 VDC) storage inverters. Up to 8 units can be connected in parallel, allowing a maximum expansion of 128kWh. The core storage cells are sourced from a Top 2 brand, delivering 6,000+ cycles, and are backed by comprehensive safety protection measures to ensure a 10-year reliable service life. This solution is ideal for new PV + storage power stations, secure backup power, and storage retrofitting projects. With its ultra-thin aesthetic design and smart home integration, it lets you enjoy a green energy lifestyle.

Technical Specifications

5kWh Battery 16kWh Battery 10kWh Battery S6-EH1P(3-10)K-L-PLUS S6-EH1P(12-18)K03-NV-YD-L S6-EH3P(5-18)K02-NV-YD-L

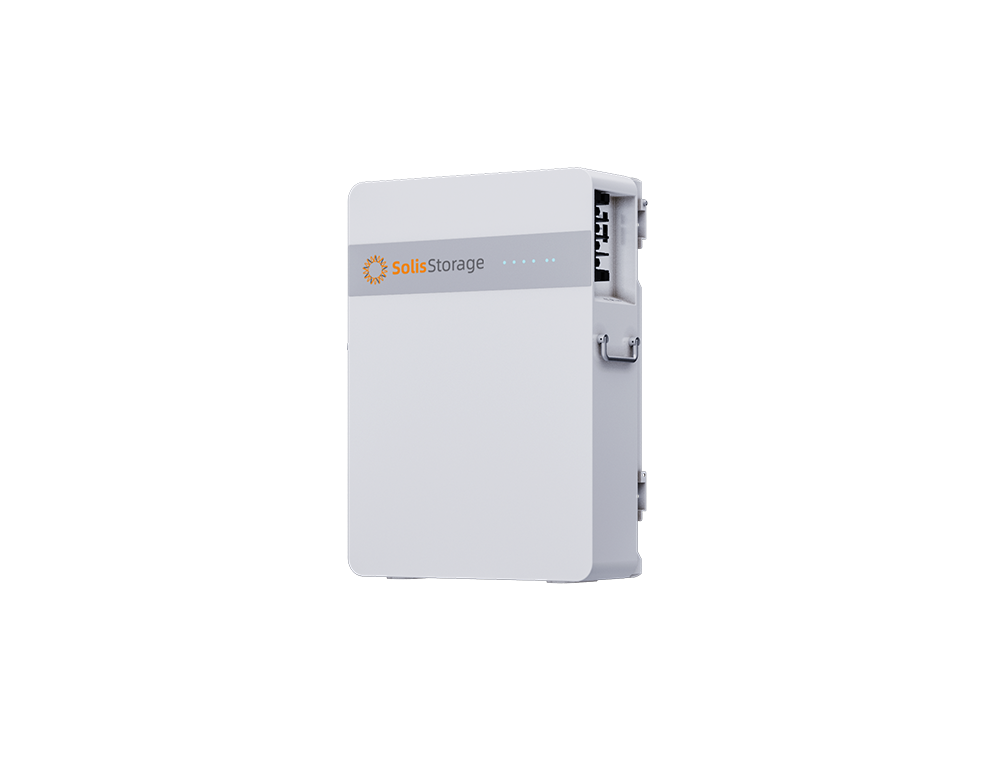

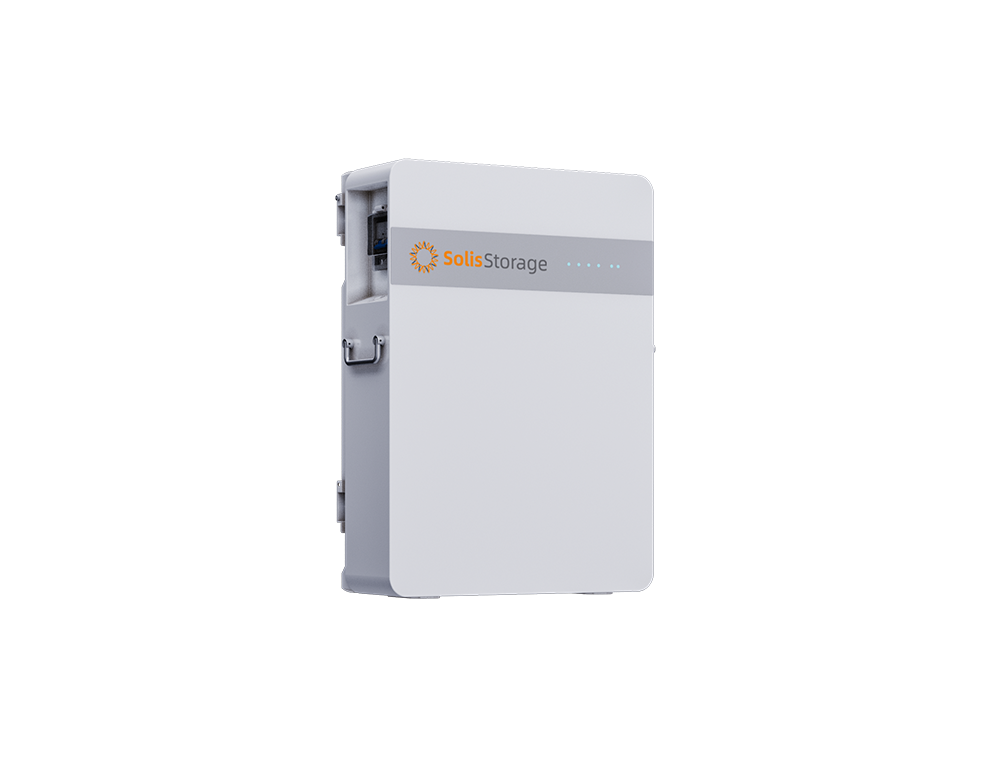

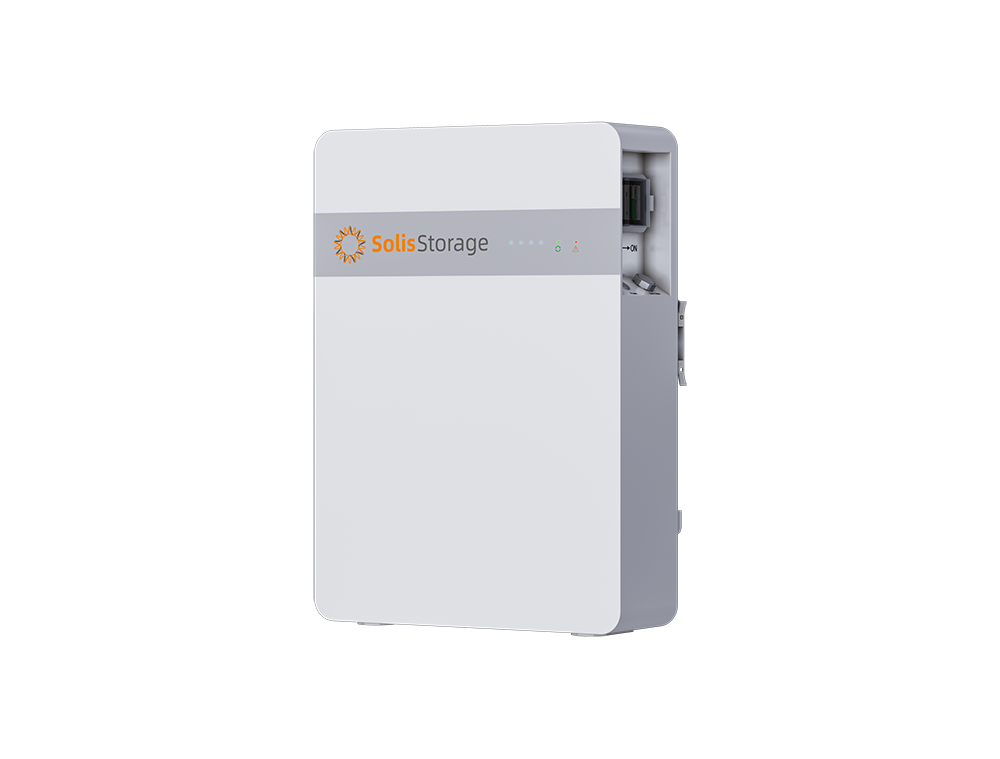

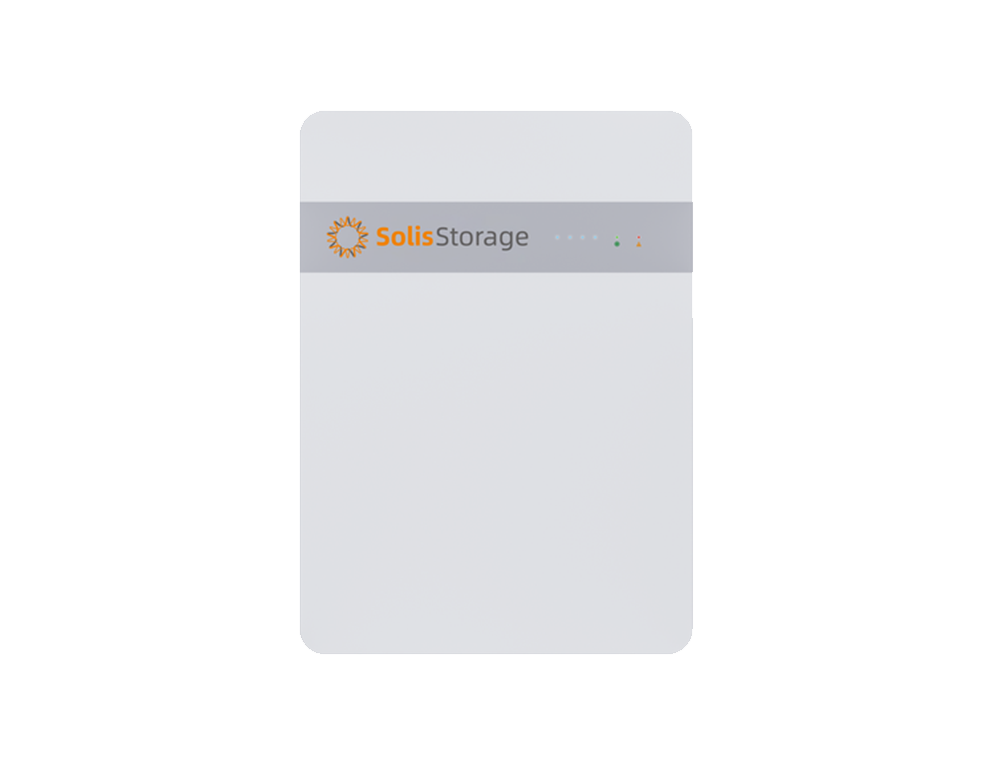

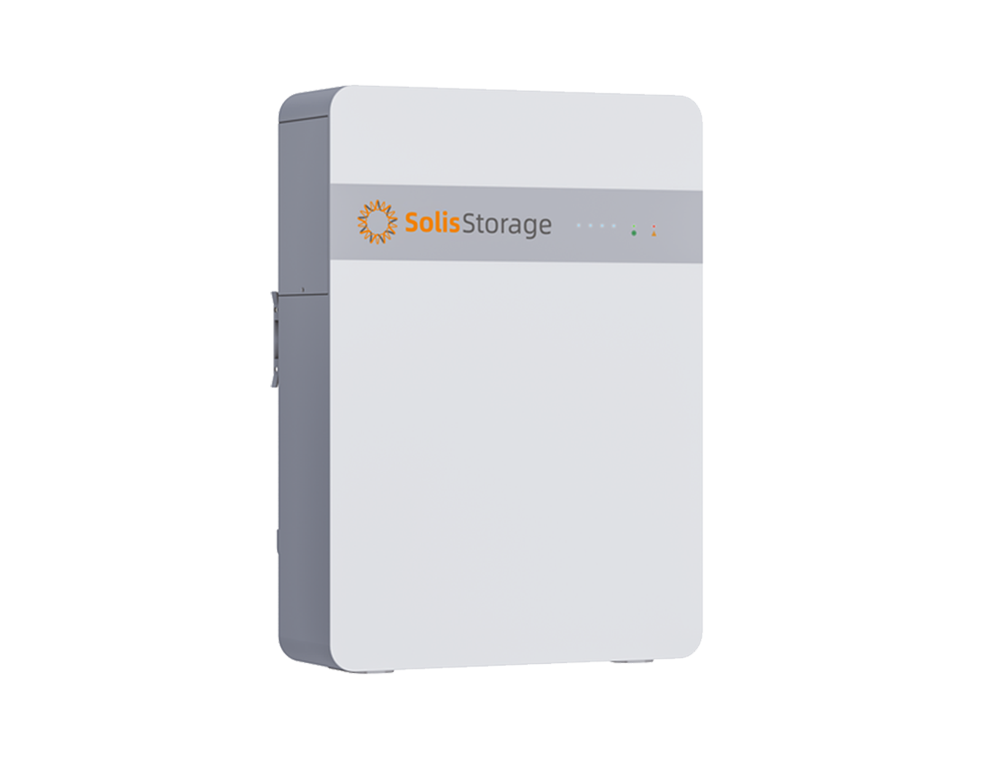

    Low Voltage Batteries

    Battery type: LiFePO4

    Nominal capacity: 5kWh

    Operating voltage: 44.8-57.6V

    Rated cell capacity: 100Ah

    Recommended charge/discharge current: 50A

    Cycle life: ≥8000 Cycles

    Ingress protection: IP66

Datasheet Download

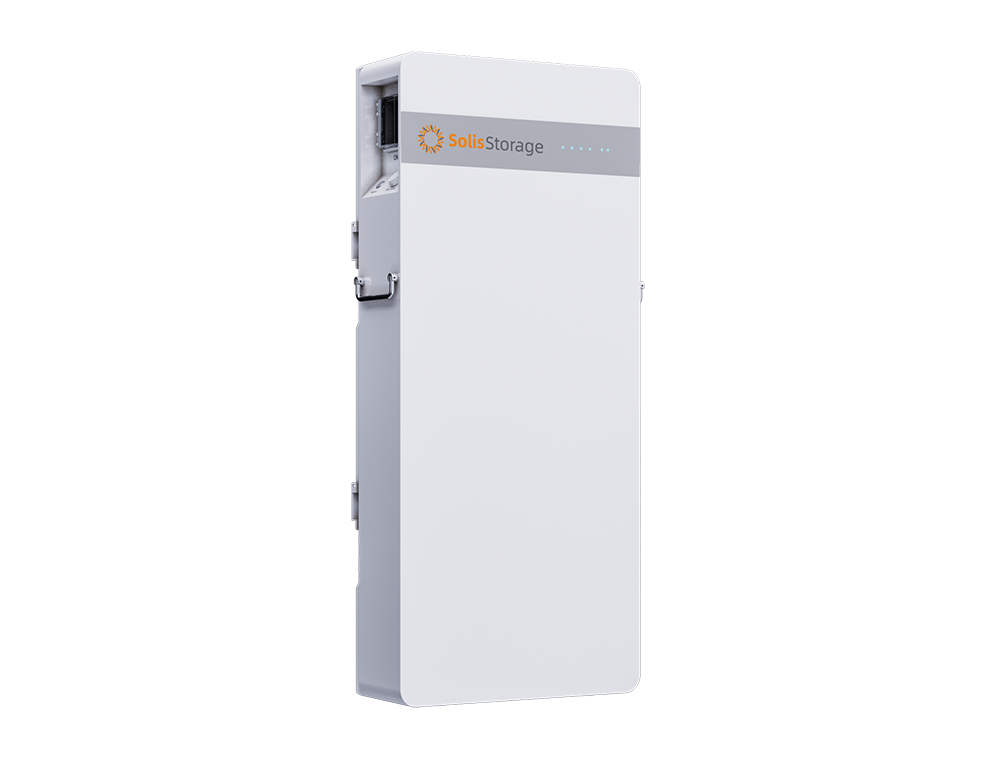

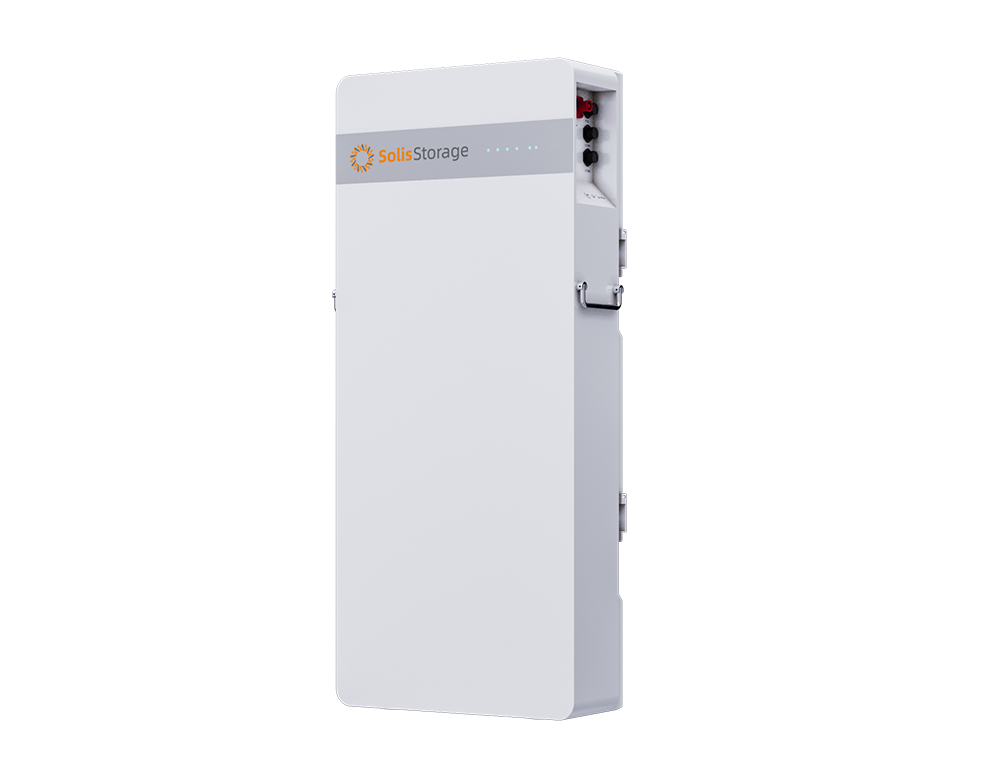

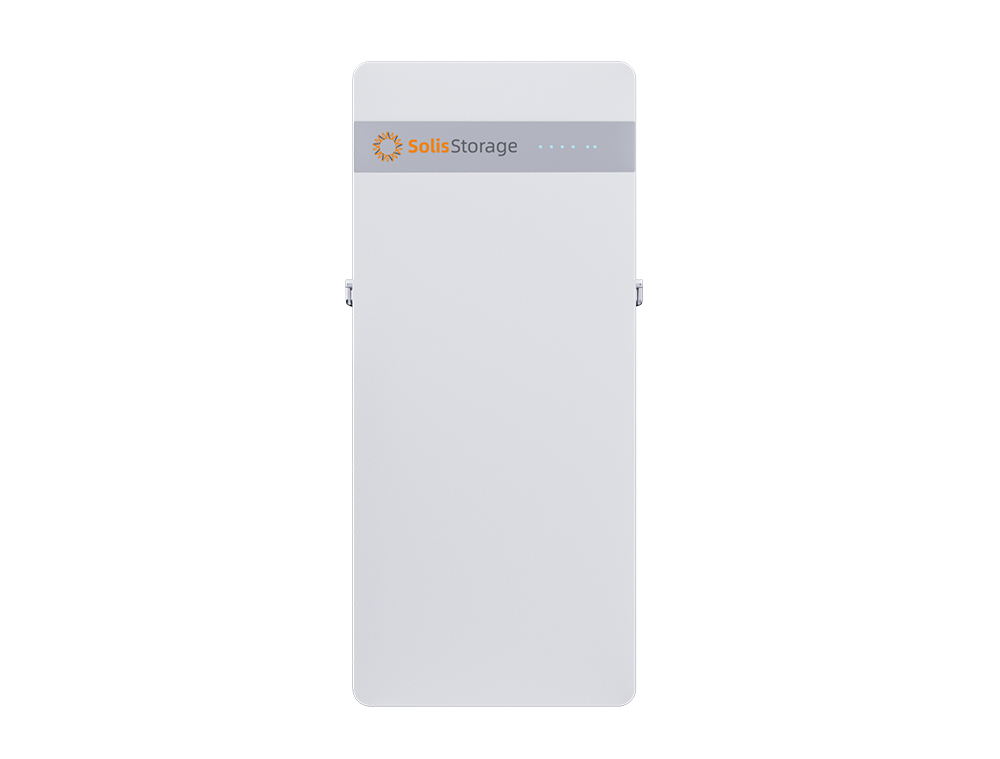

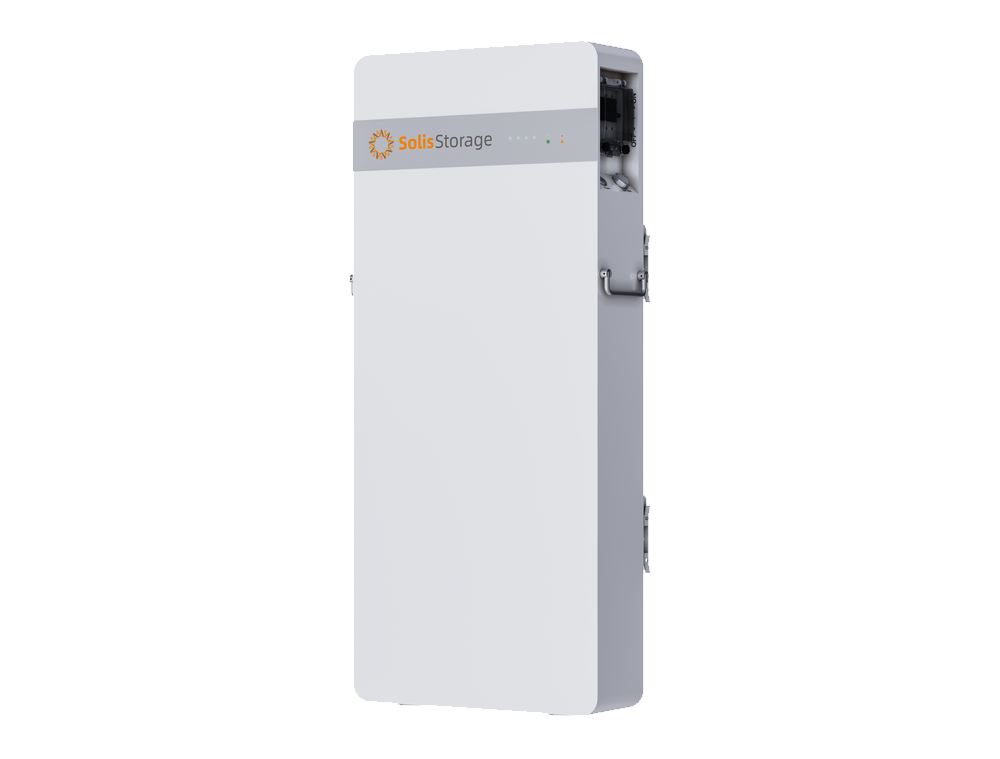

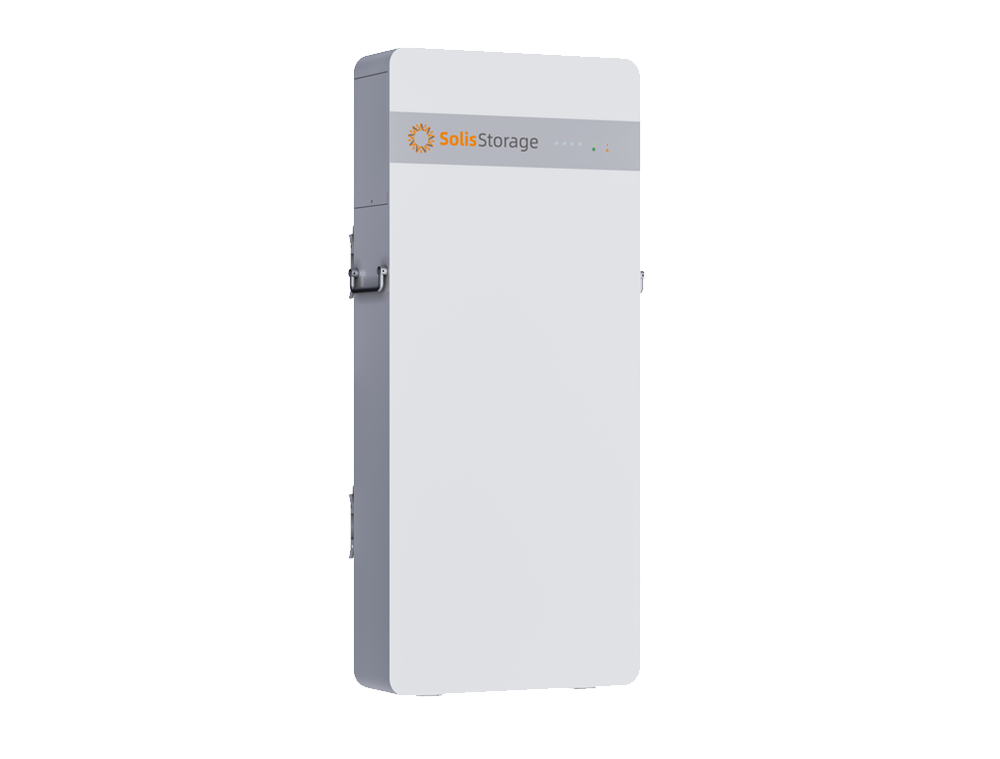

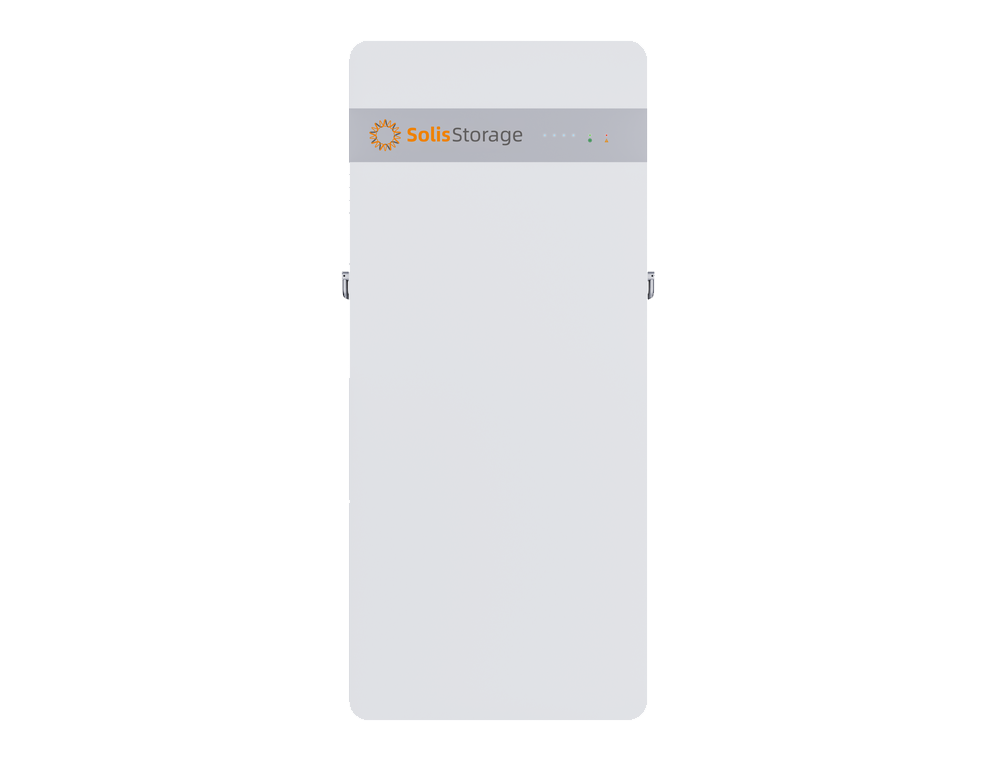

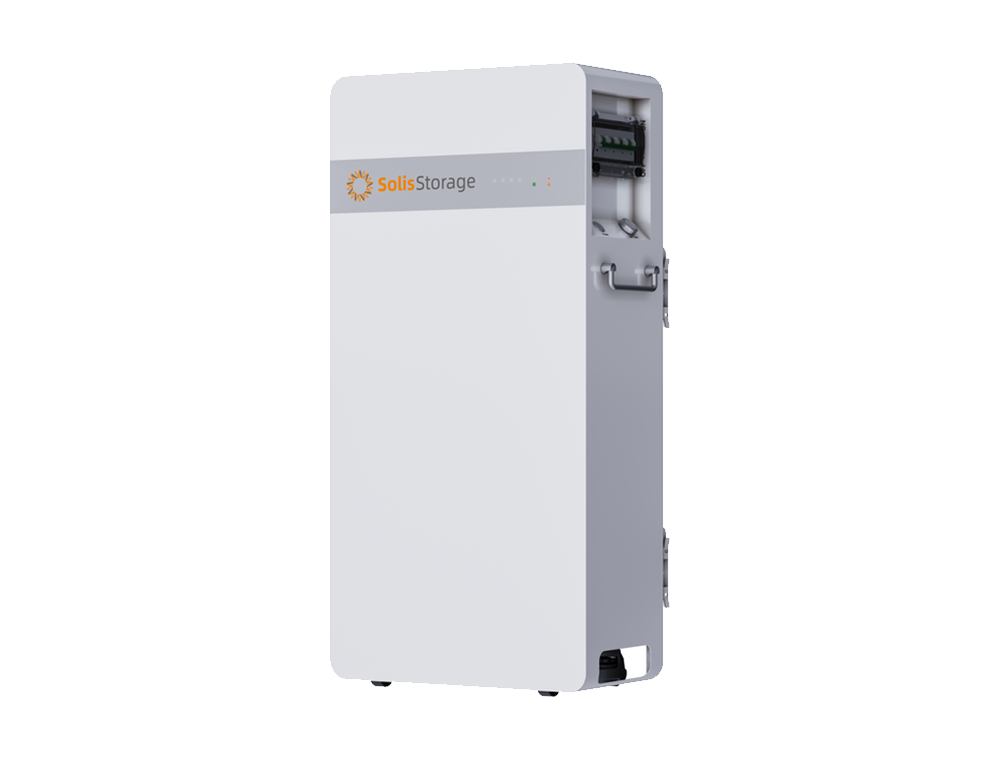

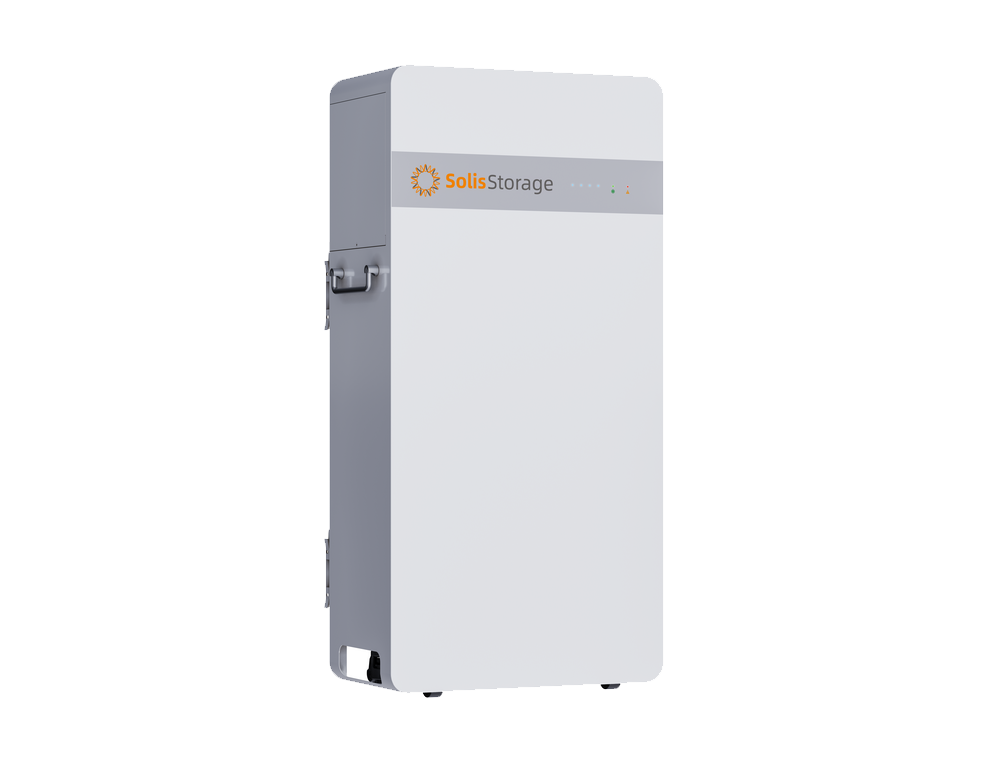

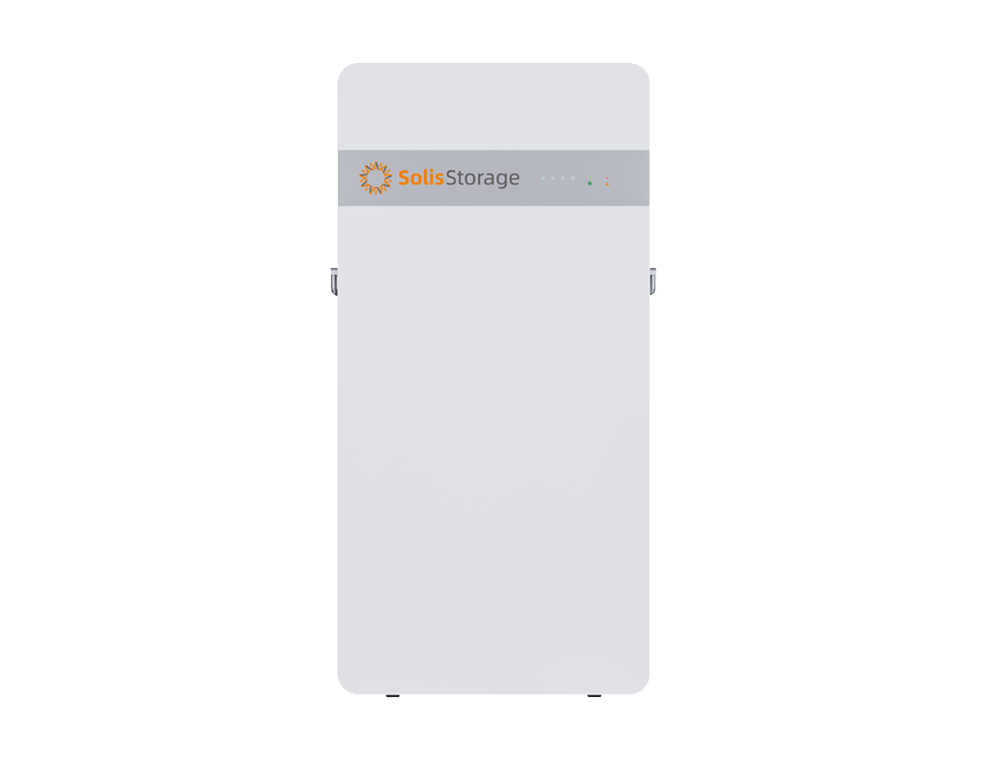

    Low Voltage Batteries

    Battery type: LiFePO4

    Nominal capacity: 16kWh

    Operating voltage: 44.8-57.6V

    Rated cell capacity: 314Ah

    Recommended charge/discharge current: 100A

    Cycle life: >6000 Cycles / 10 Years

    Ingress protection: IP66

Datasheet Download

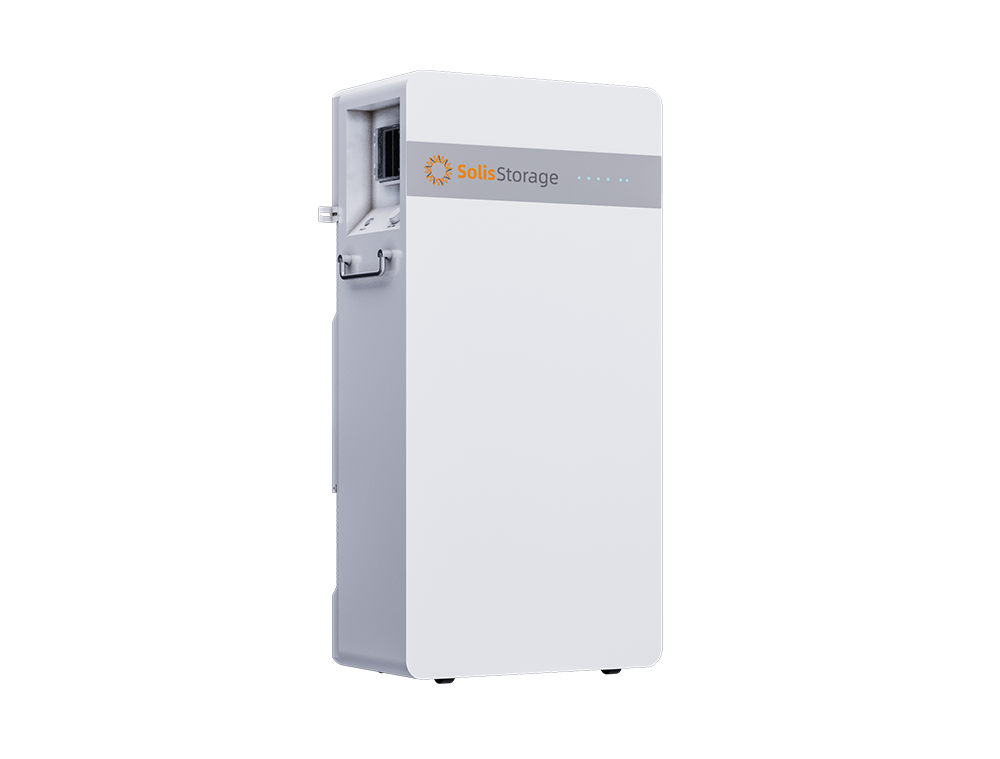

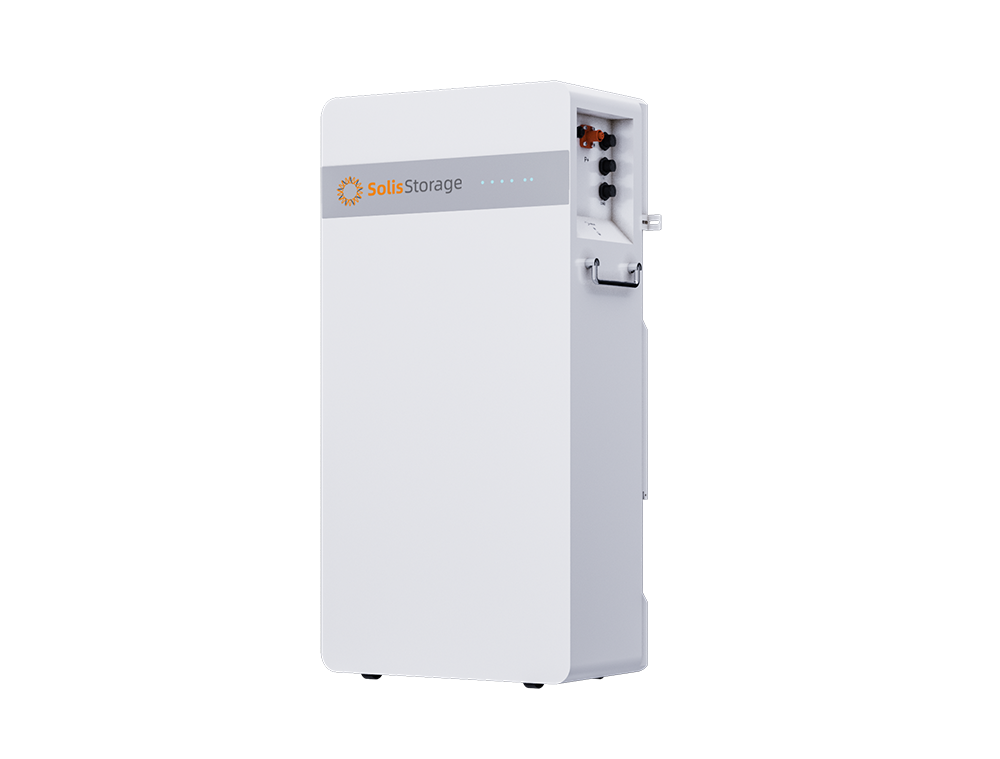

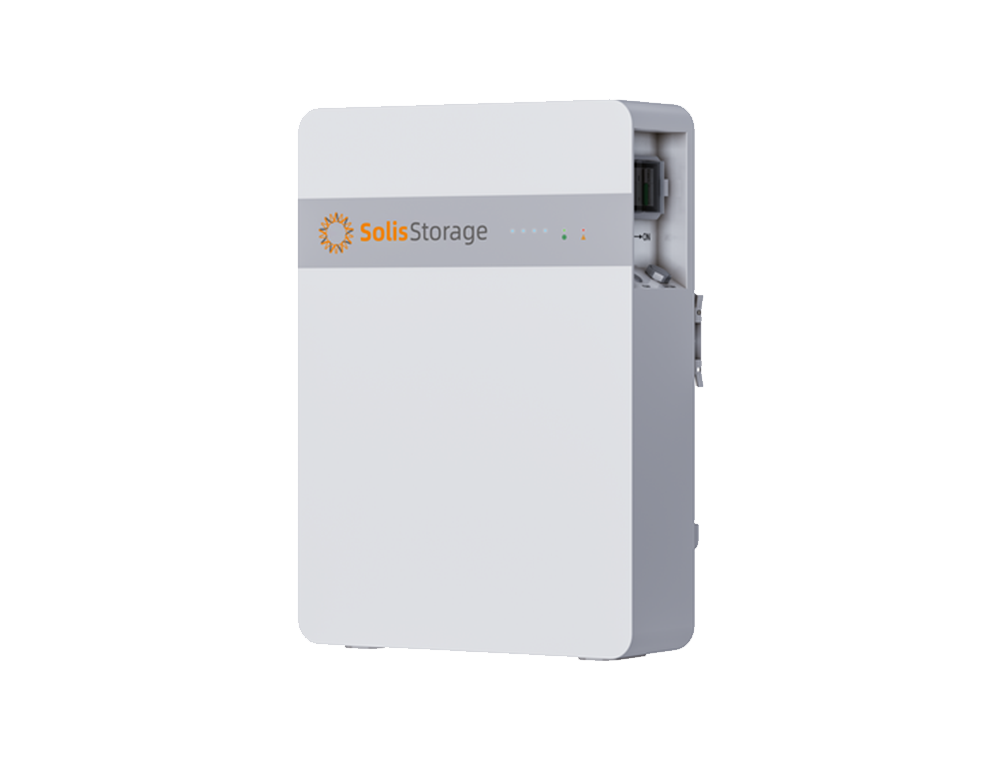

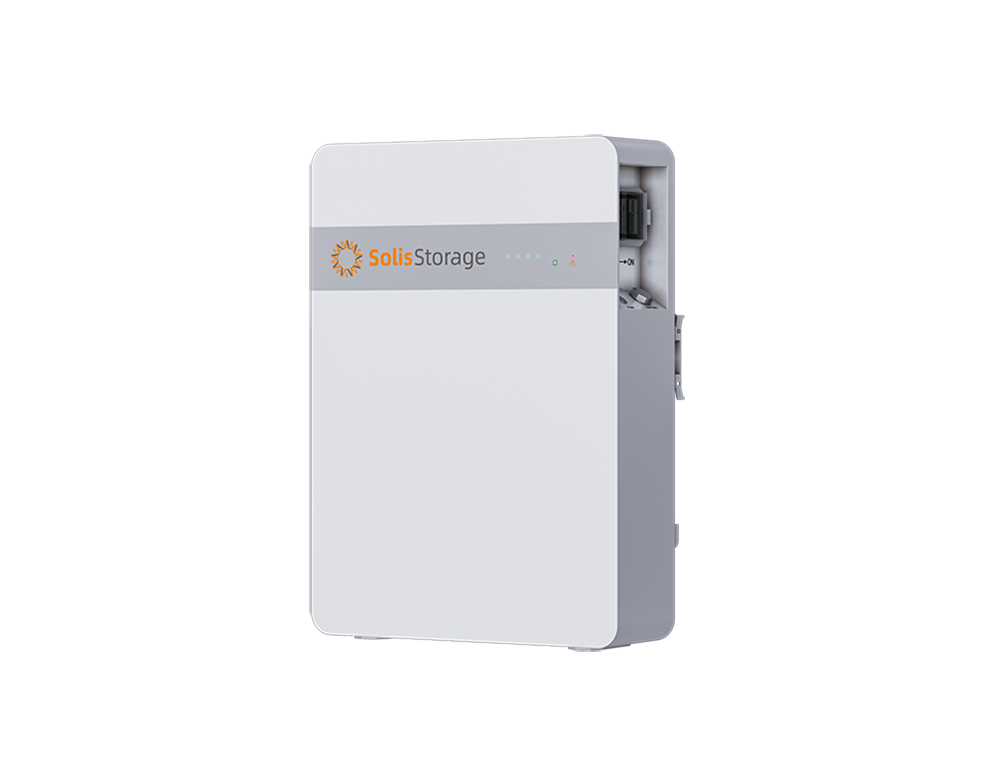

    Low Voltage Batteries

    Battery type: LiFePO4

    Nominal capacity: 10kWh

    Operating voltage:44.8 - 57.6V

    Rated cell capacity: 100Ah

    Recommended charge/discharge current: 100A

    Cycle life: ≥6000

    Ingress protection: IP66

Datasheet Download

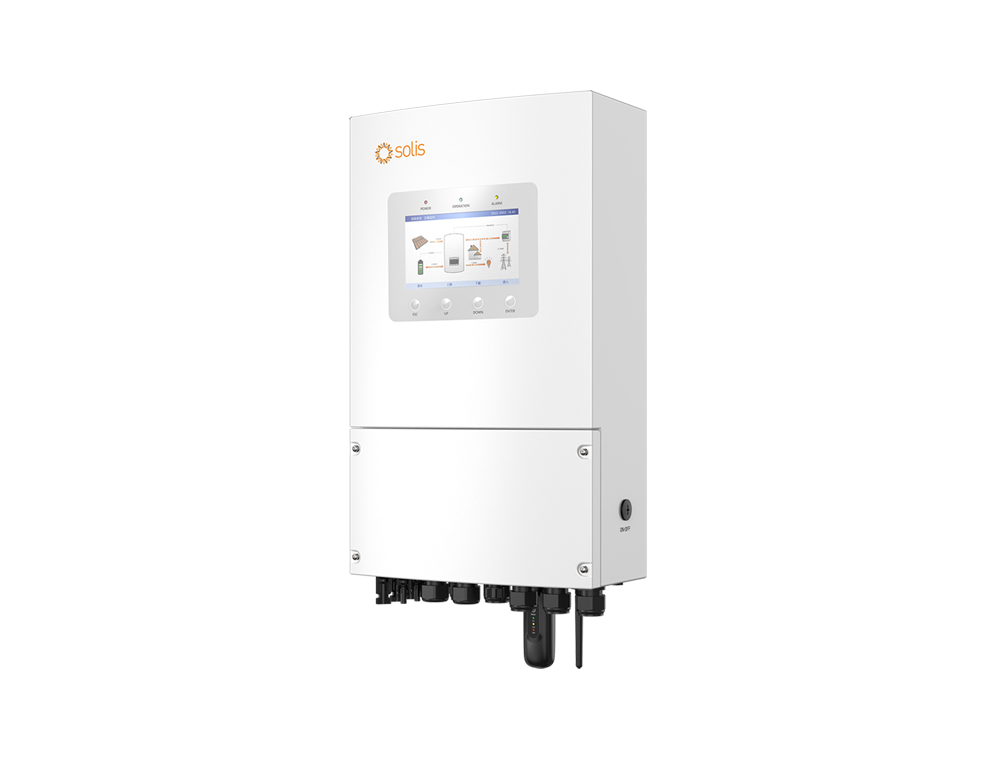

    Single Phase Hybrid Inverters

    MPPT voltage range 90 - 435V

    MPPT number : 2

    Max. input strings number: 2/4

    Rated output power: 3kW 3.6kW / 4.6kW / 5kW / 6kW / 8kW / 9kW / 10kW

    Rated grid voltage: L/N/PE, 220V / 230V

    Ingress protection: IP66

Datasheet Download

    Single Phase Hybrid Inverters

    MPPT voltage range: 80 - 520V

    MPPT number : 3

    Max. input strings number: 6

    Rated output power: 12kW / 14kW / 16kW / 18kW

    Rated grid voltage: 220V / 230V

    Ingress protection: IP66

Datasheet Download

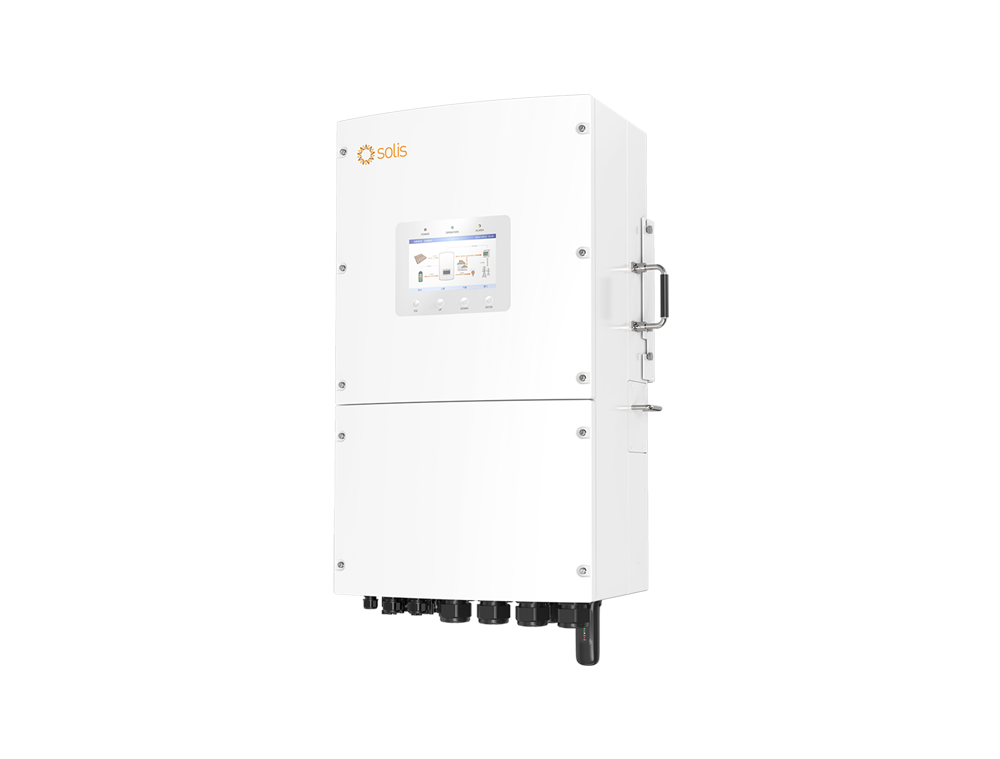

    Three Phase Hybrid Inverters

    MPPT voltage range: 200 - 850V

    MPPT number : 2

    Max. input strings number: 2 / 3 / 4

    Rated output power: 8kW / 10kW / 12kW / 15kW / 18kW

    Rated grid voltage: 3/N/PE, 220V / 380V; 3/N/PE, 230V / 400V

    Ingress protection: IP66

Datasheet Download

Leading Features

Uses A+ grade cells, ≥8,000+ (5kWh/10kWh), ≥10,000+ (16kWh) cycle life

Standard with five-layer hardware redundancy safety protection

Supports a max. 21A string input current, perfectly matching high-power PV modules

Supports 160% usable PV power, maximizing solar energy utilization

Supports 200% overload in off-grid mode, ensuring stable startup of loads

Supports seamless on-grid and off-grid switching with transfer times <10ms

Designed for all environments: IP66 protection & C5-M anti-corrosion. Optional intelligent heating enables operation down to -20°C

Supports up to 8 units in parallel, expanding capacity up to 128kWh

Solis AI – smart energy management with generator support

Supports OTA remote upgrades for efficient operation and maintenance

Redefining C&I Storage

Downloads

Datasheet Certificate Manual
S6-EH3P(8-18)K-Flyer-V2.2 IntelliHome-(5-16)kWh-Global-Flyer-V1.2 S6-EH1P(3-10)K-Flyer-V4.0 S6-EH1P(12-18)K-Flyer-V1.1
SolisStorage_Certificate_IEC&EN IEC 62040-1_IntelliHome-(14-16)kWh-OD_AUS_V01 SolisStorage_Certificate_VDE 2510&PPP 51094A_IntelliHome-(14-16)kWh-OD_GER_V01 SolisStorage_Certificate_VDE 2510&PPP 51094A_IntelliHome-10kWh-OD_GER_V01 SolisStorage_Certificate_IEC 62619_IntelliHome-(14-16)kWh-OD_safety_V01(CB) SolisStorage_Certificate_IEC 62619_IntelliHome-5kWh-OD_safety_V01(CB) SolisStorage_Certificate_IEC 62619_IntelliHome-10kWh-OD_safety_V01(CB) SolisStorage_Certificate_IEC 63056_IntelliHome-(14-16)kWh-OD_safety_V01(CB) SolisStorage_Certificate_IEC 63056_IntelliHome-5kWh-OD_safety_V01(CB) SolisStorage_Certificate_IEC 63056_IntelliHome-10kWh-OD_safety_V01(CB) SolisStorage_Certificate_EN IEC 61000-6-1(-2)(-3)(-4)_IntelliHome-(14-16)kWh-OD_EMC_V01 SolisStorage_Certificate_EN IEC 61000-6-1(-2)(-3)(-4)_IntelliHome-5kWh-OD_EMC_V01 SolisStorage_Certificate_EN IEC 61000-6-1(-2)(-3)(-4)_IntelliHome-10kWh-OD_EMC_V01 SolisStorage_Certificate_EN IEC 61000-6-1(-2)(-3)(-4)_IntelliHome-(14-16)kWh-OD_EMC_V01 SolisStorage_Certificate_EN IEC 61000-6-1(-2)(-3)(-4)_IntelliHome-5kWh-OD_EMC_V01 SolisStorage_Certificate_EN IEC 61000-6-1(-2)(-3)(-4)_IntelliHome-10kWh-OD_EMC_V01 SolisStorage_Certificate_IEC 62619&IEC 63056_IntelliHome-(14-16)kWh-OD_Safety_V01 SolisStorage_Certificate_IEC 62619&IEC 63056_IntelliHome-5kWh-OD_Safety_V01 SolisStorage_Certificate_IEC 62619&IEC 63056_IntelliHome-10kWh-OD_Safety_V01
SolisStor IntelliHome-5kWh-OD-Quick Installation Manual SolisStor IntelliHome-10kWh-OD-Quick Installation Manual SolisStorage IntelliHome-16kWh-OD-Quick Installation Manual SolisCloud Quick Commission Guide SolisStorage Manual IntelliHome-5kWh10kWh14kWh16kWh-OD EUR
